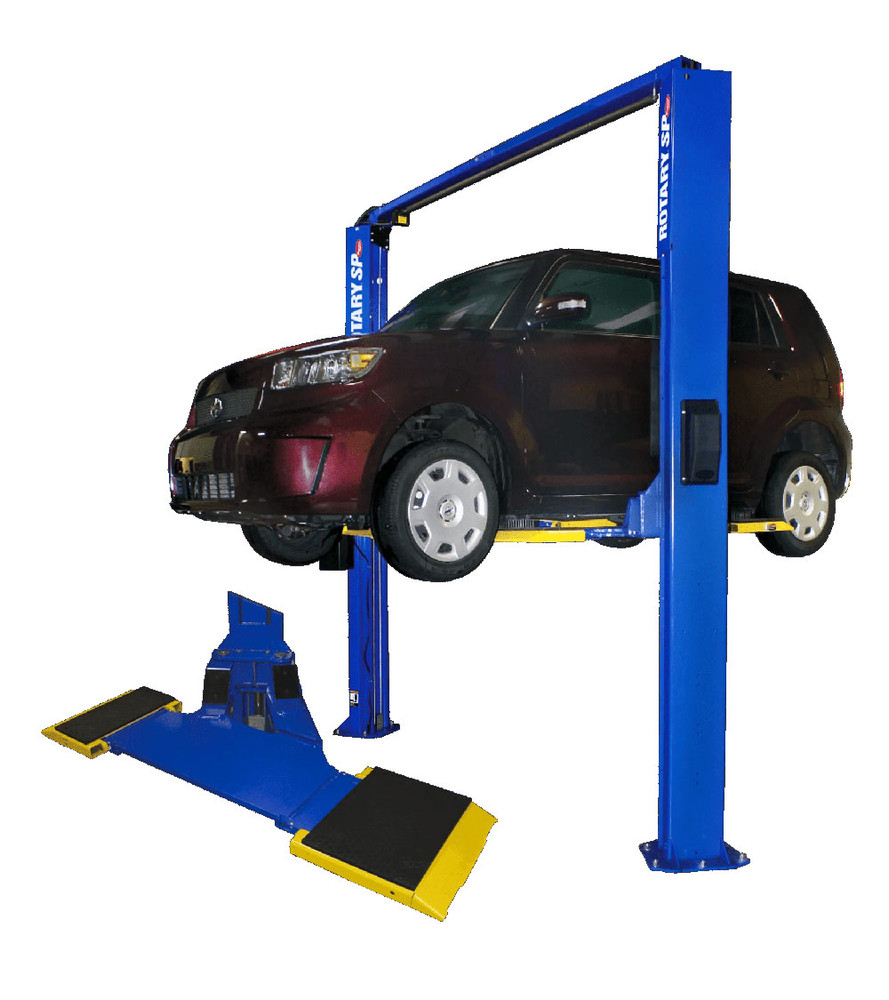

Rotary SPOA7-MP 7,000 lb. ALI Certified Two-Post Asymmetric Pad Lift
$11,370.00
The quick service pad lift includes time-saving features that help get your customers in and out faster with efficient, no-appointment-necessary maintenance and routine service. Featuring an ultra-low profile and an easy-to-adjust pad, our pad lift minimizes drive-over clearance and allows vehicles to be spotted quickly, easily, and accurately.
Faster service = more revenue. Perfect for a quick-lube bay.
The quick service pad lift includes time saving features that help get your customers in and out fast with efficient, no-appointment necessary maintenance and routine service.
Rubber spacer blocks provide clearance
Includes four (4) each 1.5” and 3” blocks
Rotary SPOA7-MP 7,000 lb. ALI ...
$11,370.00
Need Help?
Replies within one business day
7,000 lbs. capacity
• 4 adjustable lift height options
• Available with SHOCKWAVE power
• Original “Double S” column
• ALI Gold Certified
Product Specifications
|
Specifications |
SPOA7-MP |
SPOA7-MPSW |
|
Adapters |
Moveable Pad |
Moveable Pad |
|
Lifting Capacity |
7,000 lbs. |
7,000 lbs. |
|
Lifting Capacity (per platform) |
3,500 lbs. |
3,500 lbs. |
|
Rise |
74”-77” |
74”-77” |
|
Width Overall |
11’ 5 3/8” |
11’ 5 3/8” |
|
Floor to Top of Overhead Standard |
11’ 8 1/2” |
11’ 8 1/2” |
|
Floor to Top of Overhead EH1 |
12′ 8 1/2″ |
12′ 8 1/2″ |
|
Floor to Top of Overhead EH2 |
13’ 8 1/2” |
13’ 8 1/2” |
|
Cylinder at Full Rise Standard |
11’ 10 3/4” |
N/A |
|
Cylinder at Full Rise Extended Option |
12’ 4 3/4” |
12’ 4 3/4” |
|
Width Between Columns |
107” 1/4” |
107” 1/4” |
|
Floor to Overhead Switch |
11’ 2 3/4” |
11’ 2 3/4” |
|
Drive Over Clearance |
2 5/8” |
2 5/8” |
|
Drive-Thru Clearance |
79” |
79” |
|
Outside of Pad to Outside of Pad |
78 1/2” |
78 1/2” |
|
Inside of Pad to Inside of Pad |
37 1/8” |
37 1/8” |
|
Pad Length Overall Retracted |
70 13/16” |
70 13/16” |
|
Pad Length Overall Extended |
86 13/16” |
86 13/16” |
|
Minimum Distance Between Pads |
39 9/16” |
39 9/16” |
|
Maximum Distance Between Pads |
55 9/16” |
55 9/16” |
|
Motor Performance |
2 HP |
5 HP |
|
Voltage Single Phase |
208/230v |
110/120v |
|
Speed of Rise |
45 seconds |
25 seconds |
