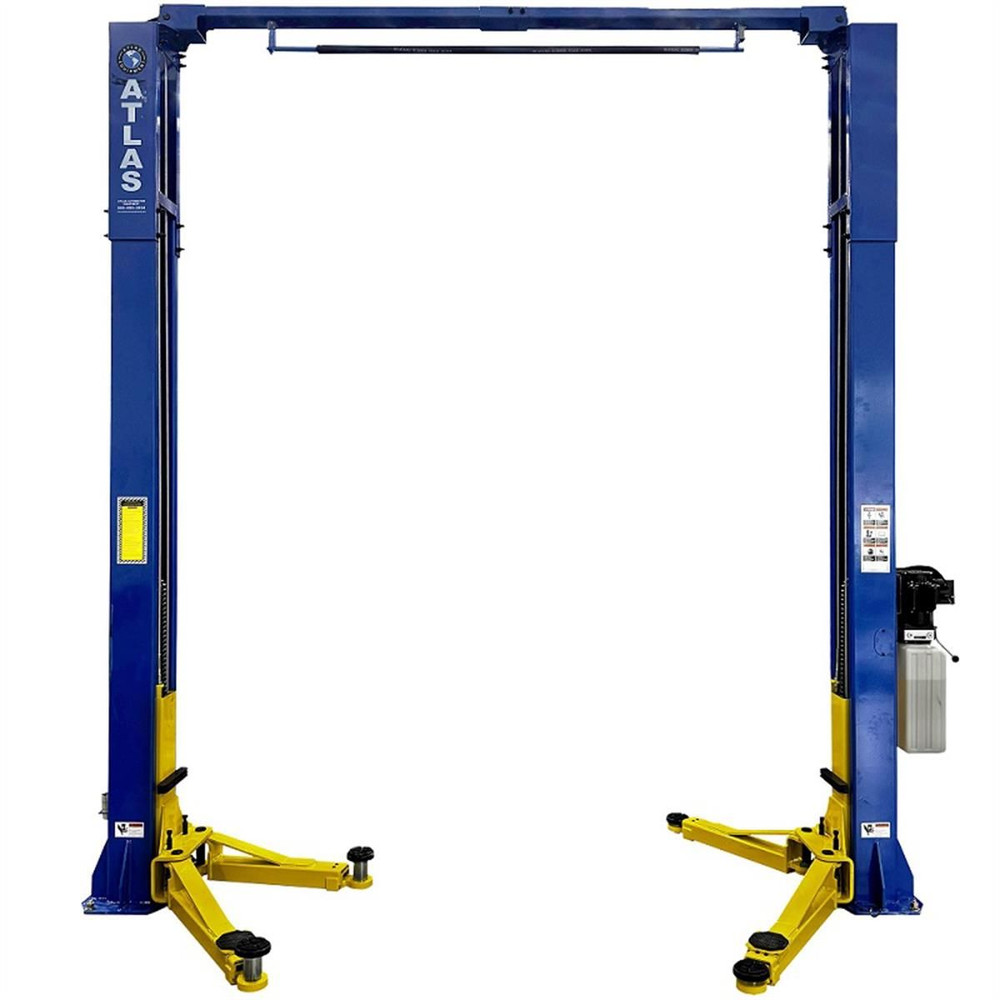

Atlas XH-TPO-9 9000 lb Capacity Overhead 2 Post Lift
$3,260.00
Atlas XH-TPO-9 9000 lb Capacity Overhead 2 Post Lift
The light duty Atlas® TPO-9 lift is an economically designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV’s and light duty trucks. The TPO-9 has an overall height of 12 feet.
The Atlas® TPO-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® TPO-9 two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain..
Atlas XH-TPO-9 9000 lb Capacit...
$3,260.00
Need Help?
(+123) 456 555 789
(+123) 666 202 888
(+123) 666 202 888
Atlas XH-TPO-9 9000 lb Capacity Overhead 2 Post Lift
Features and Benefits:
- 9,000 lb. Capacity
- Overhead, Open-Floor design
- Overall Height: 144″ (12′)
- Symmetric Arms
- Automatic Arm Restraints
- Dual-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Adjustable Screw-Up Adapters Included
- Free 4 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters
- Mounting Hardware Included
- Shipping Weight: 1,450 lbs.
- 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID
Atlas® TPO-9 Specifications
- Capacity 9,000 LB.
- Overall Height 144” (12′)
- Overall Floor Width 133 1/2″ (11′ 1 1/2″)
- Maximum Lift Height (Without Adapters) 76 1/2″
- Maximum Lift Height (With Adapters) 79 1/2″
- Minimum Arm Height 4″
- Inside Column 111 5/8” (9′ 3 5/8”)
- Drive Thru 99 1/2” (8′ 3 1/2”)
- Column Size 7 1/4″ x 11″
- Column Thickness of Steel 5mm
- Base Of Lift 14 1/4″ x 18″
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,450 LBS.
- Adapter Heights 4 Each 2.75″
- Arm Hole/Adapter Peg Size 2”
- Requires a minimum of 4″ of concrete with a 3000 psi. rating
