Mahle CSP-75 75 Ton Shop Press — Steel Bay Automotive Supply

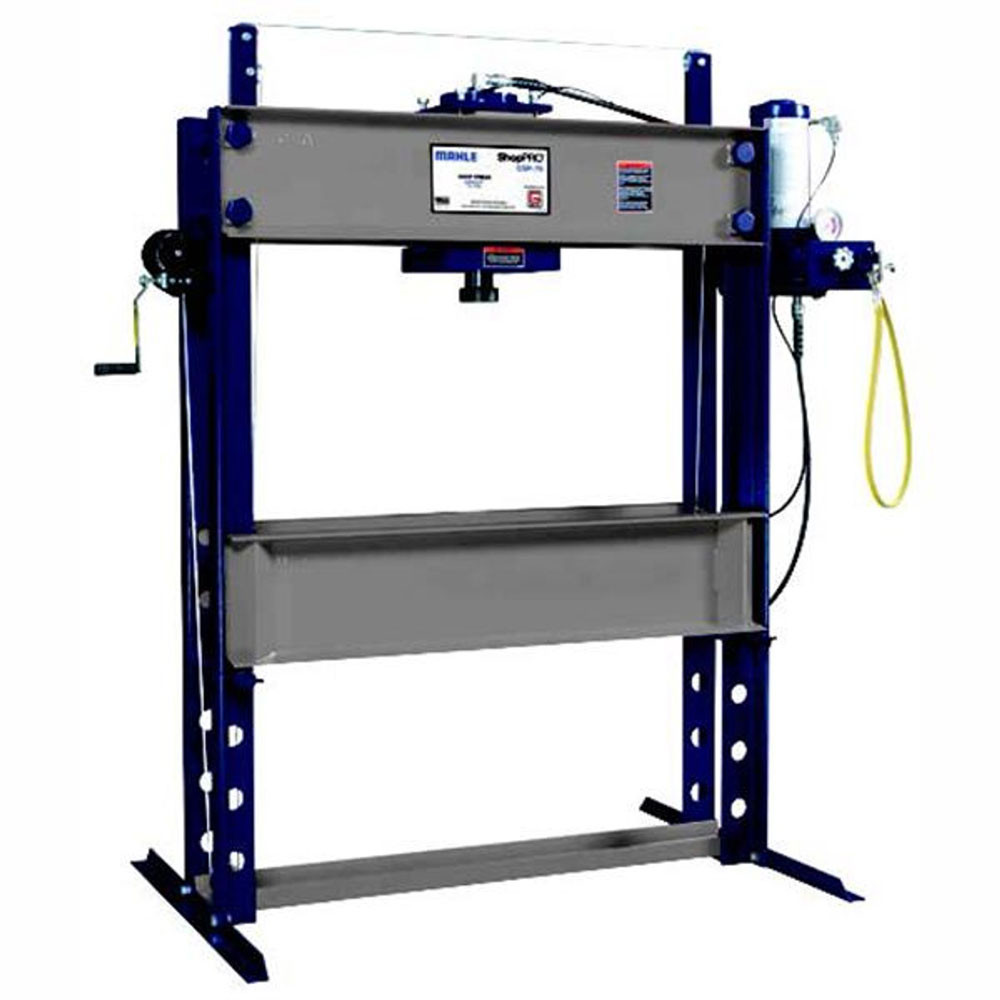

Mahle CSP-75 75 Ton Shop Press

$14,549.00

Mahle CSP-75 75 Ton Shop Press

The CSP-75 features full capacity side-to-side adjustment, a four way mountable air/hydraulic pump, precision control, quick exhaust, a winch cable for raising and lowering the bolster and an adjustable bolster with six positions and a wide throat.

Add to Wishlist
Add to compare
SKU: SB-11102 Categories: ,
Mahle CSP-75 75 Ton Shop Press — Steel Bay Automotive Supply Mahle CSP-75 75 Ton Shop Press

$14,549.00

Free US Shipping

Free to all 50 states, liftgate freight included.

Secure Checkout

SSL-encrypted ordering and data protection.

Refundable Cores

Core deposits refunded in full when your old unit comes back.

No Restocking Fee

30-day returns on uninstalled parts.

Need Help?

sales@steelbayautomotivesupply.com
Replies within one business day

Mahle CSP-75 75 Ton Shop Press

Adjustable bolster with six positions

Four-way mountable pump

Winch cable for raising and lowering the bolster

Gray engineered and built power units

Product Specifications

Capacity 75 Tons (68,039 kg)

Power Source Air/Hydraulic

Stroke 8.8 in (22.2 cm)

Horizontal Ram Travel 32 in (81 cm)

Throat Width 50 in (127 cm)

Inside Throat Depth 8 in (20 cm)

Outside Throat Depth 14 in (25 cm)

Required Air Pressure 120 to 200 psi (8.3 to 13.8 bar)

Adjustment Increments 6 in (15 cm)

Vertical Throat Minimum 9.5 in (24.1 cm)

Vertical Throat Maximum 39.5 in (100.3 cm)

Dimensions (H x W x D) 85 in x 78 in x 44 in (216 cm x 198 cm x 112 cm)
