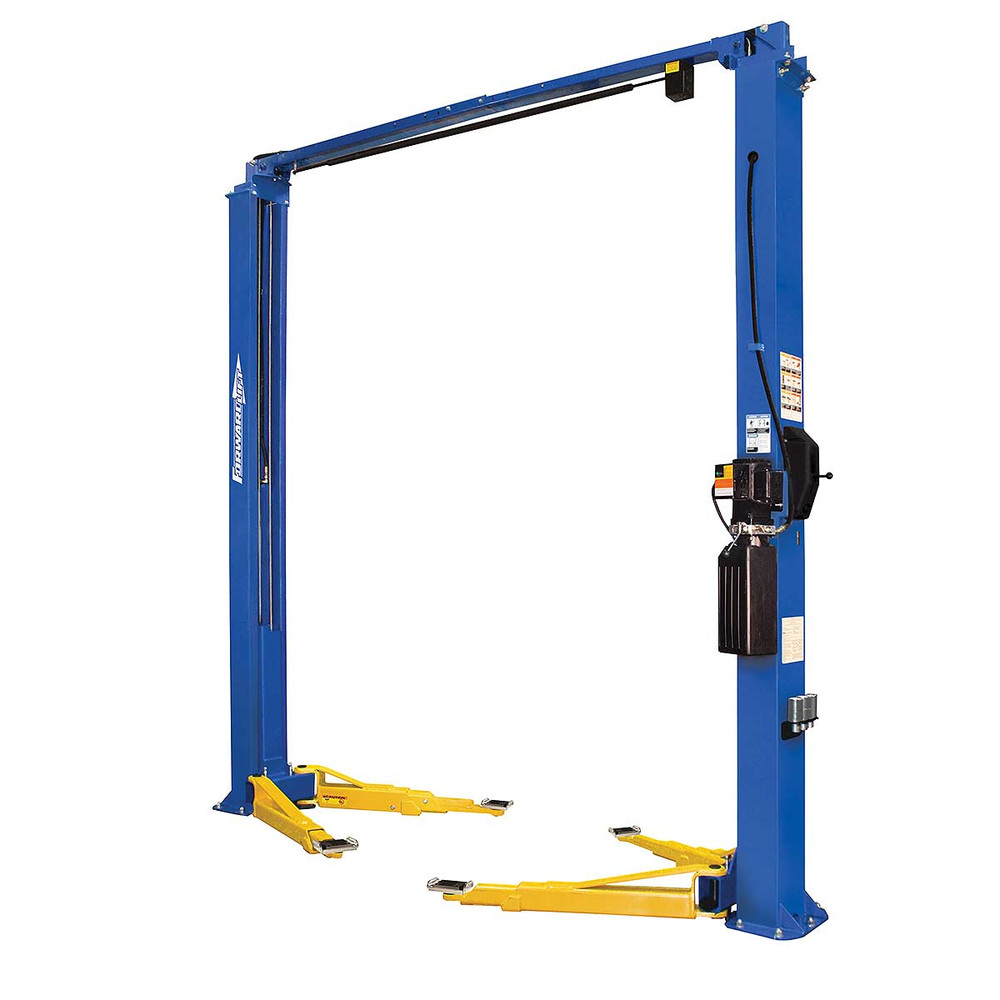

Forward Lift F10 10,000 lb ALI Certified Two-Post Lift
$5,189.00
F10 Two-Post Lift Features:
Frame engaging rubber padded truck adapters with multiple adapter extensions to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.
Forward Lift F10 10,000 lb ALI...
$5,189.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Additional Features:
- 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
- Third party tested by ETL and approved by ALI.
- 3-stage front and 2-stage rear arms
- Adapter storage bracket kit
- Hydraulic cylinders in each column:
- Direct pull lifting technology
- Top mounted
- Full stroke
- Cylinder rod concealed inside carriage
Specifications
| Specifications | F10N400MBL |
| Capacity | 10,000lbs |
| Max. Rise w/5″ extension | 76-1/4″ (1937mm) |
| Overall Height | 143″ (3632mm) |
| Overall Width | 131″ or optional 137″ (3327mm / 4380mm) |
| Drive through clearance | 99″ or optional 105″ (2515mm / 2667mm) |
| Overhead switch height | 137-5/8″ (3496mm) |
| Front reach (Min/Max) | 24-1/2″” / 44-3/8″ (621mm / 1127mm) |
| Rear reach (Min/Max) | 36″ / 58″ (914mm / 1473mm) |
| Min/Max Adapter Height | 3-3/4″ (95mm) no adapter extension 8-3/4″ (222mm) w/5″ adapter extension |
| Width Inside Column | 109″ or optional 115″ (2769mm / 2921mm) |
| Adapter Heights | 3-1/2″and 5″ |
| Voltage/Amps | 208 / 230, 15 amps; 208/230, 16 amps |
| Motor | 1ph*/2HP/50Hz; 1ph*/2HP/60Hz |
| Ceiling height required | 144″ (3658mm) |
| *3-phase available at additional cost Lifts available in blue and red Specifications subject to change without notice or liability |
|
