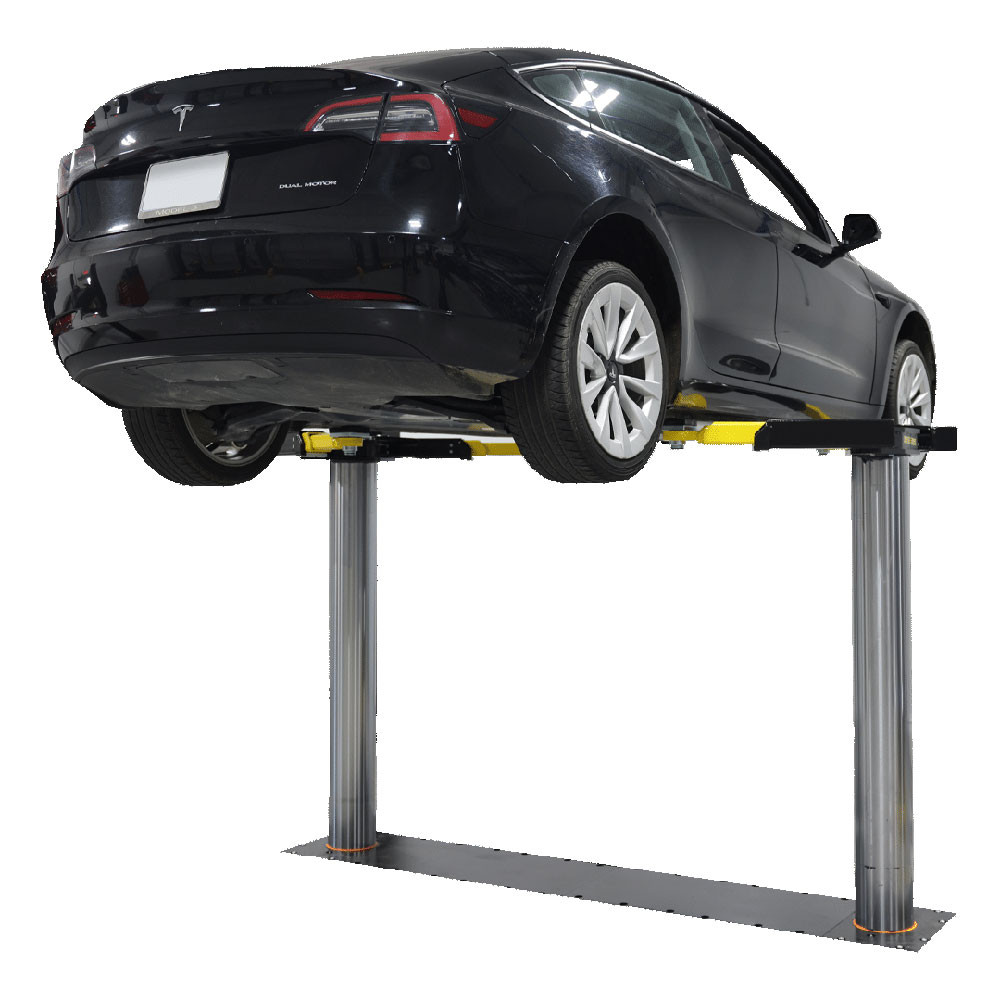

Challenger EW1020 10000 lb ALI Certified Wide Inground Car Lift
- 3-Stage Front & Rear Arms
- No Bolster to Drive Over
- Easier install thanks to only needing one concrete pour instead of the current three
| Model Number | EW1020 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Capacity per Arm | 2,500 lbs. |
| Arms | 3-stage front/3-stage rear |
| Screw Pad Height | 4” – 6.125” |
| Arm Reach | 20″ – 42″ |
| Stroke | 72” |
| Rise Height | 78” |
| Drive-Thru Clearance | 88” |
| Width Overall | 118″ |
| Speed of Rise | 41 s |
| Air Required | 90 – 120 psi |
| Super Structure Colors | Black, Red or Blue |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| ALI/ETL Certified | Yes |
