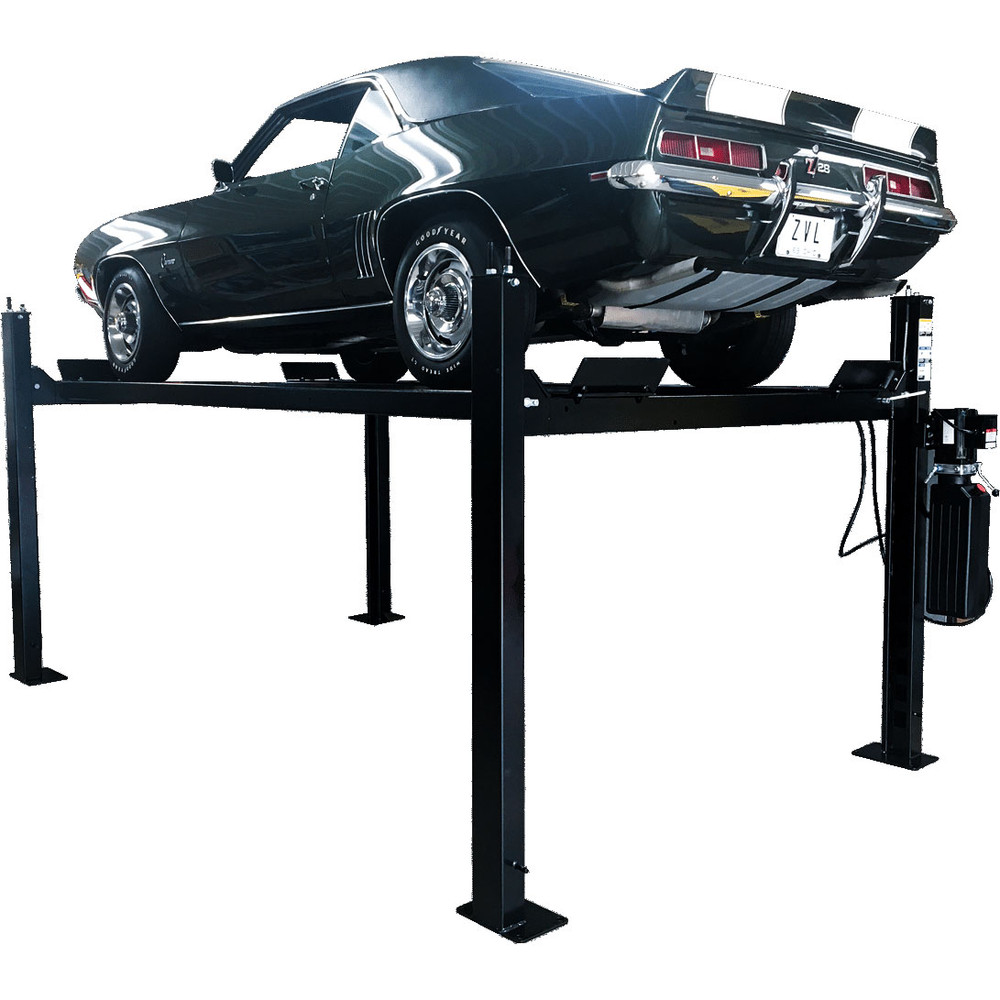

Challenger CL4P9 9,000 lb. ALI Certified 4-Post Storage Lift
$5,974.00
Looking for a reliable and customizable storage lift to enhance your garage space or commercial vehicle storage? Look no further than Challenger’s 7,000 or 9,000 lbs. capacity, ALI® certified Home Storage Lifts. These lifts are engineered to handle any light-duty general service application and provide maximum versatility to complement your vehicle management needs.
You can customize your lift with optional accessories to meet your unique requirements. From Drip Trays to Rolling Jacks, these accessories allow you to tailor your lift to suit your specific needs. Plus, with the choice between Standard, Wide, or Extended models (9K only), you can choose the lift that best suits your space or your vehicle.
But these lifts aren’t just about functionality. They’re also designed with precision and durability, ensuring your lift can handle the load safely and efficiently. With their ability to accommodate home enthusiasts and commercial applications, Challenger’s Home Storage Lifts are the perfect investment for anyone looking to elevate their vehicle management to the next level.
Challenger CL4P9 9,000 lb. ALI...
$5,974.00
Need Help?
Replies within one business day
- ,000 lb. lifting capacity
- Up to 85.5” service rise height in top locked position
- Up to 80″ clearance in top locked position for storage application
- Multiple heights, lengths and widths available (9,000 lb. models only)
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Commercial-grade formed runways ensure a strong, stable unit
- Single-point manual lock release disengages column locks simultaneously
- Air not required for operation
- Anchoring not required to maintain ALI/ETL certification
- Larger columns and base plates add stability (9,000 lb. models only)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays (sold separately)
- Powder coat finish provides long-lasting durability
| Model Number | CL4P9S | CL4P9X | CL4P9W |
|---|---|---|---|
| Lifting Capacity | 9,000 lbs. | 9,000 lbs. | 9,000 lbs. |
| Length Overall | 209.5” | 233.5” | 233.5” |
| Width Overall | 112.25” | 112.25” | 127.25” |
| Inside Columns | 95” | 95” | 110” |
| Between Columns | 160.5” | 184.75” | 185.75” |
| Height of Columns | 7’ .5” | 8’ .5” | 8’ .5” |
| Height of Runways (Floor to top of Runway) | 7” | 7” | 7” |
| Width of Runways | 20” | 20” | 20” |
| Width Between Runways | 38” | 38” | 38” |
| Rise Height (Top of Runway at top position) | 73.25” | 85.5” | 85.5” |
| Clearance Height (Storage) | 67.75″ | 80″ | 80″ |
| Max. Wheelbase* | 155” | 179” | 179” |
| Crossbeam Clearance Height | 68” | 80” | 80” |
| Motor | 1HP/2HP | 1HP/2HP | 1HP/2HP |
| Voltage (1 Phase Std) | 115v/230v | 115v/230v | 115v/230v |
| Speed of Rise (115v/230v) | 120/60 s | 120/60 s | 120/60 s |
| Min. Recommended Bay Size | 11’ x 22’ | 11’ x 22’ | 14’ x 22’ |
| ALI/ETL Certified | Yes | Yes | Yes |
| Colors Available | Black | Black | Black |
