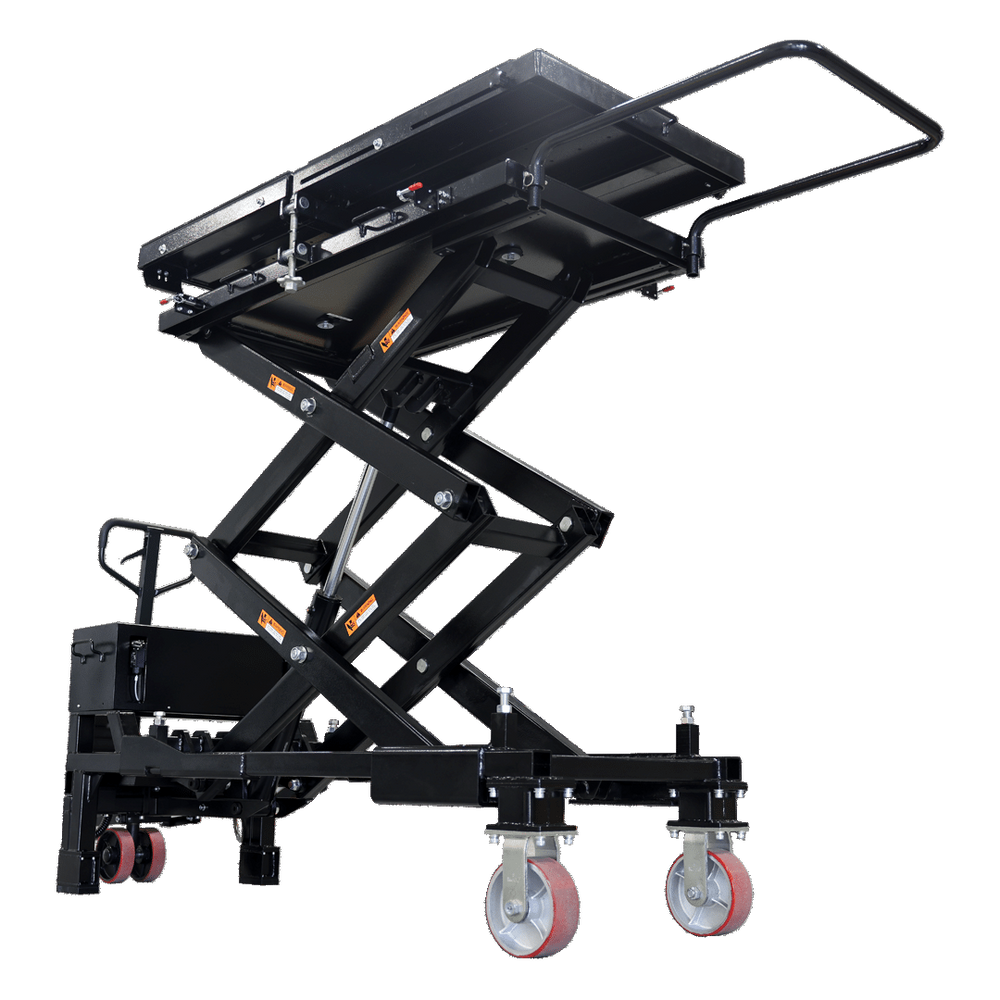

Challenger BT3300 3,300 lb. Battery Lift Table
$13,078.00
The BT3300 features a pallet-jack handle, providing low rolling resistance and exceptional maneuverability around the shop. 6º of angle adjustment allows for more precise alignment of high-voltage batteries, engines, drivetrains, rear differentials, fuel tanks, and more.
Standard equipped with a simple pendant control, the easy-to-operate BT3300’s rise height is over 76″. It supports 3,300 lbs., allowing you to service most batteries in today’s EVs. Fastener holes every 4″ in the top surface accommodate various OEM adapters. The side-shift feature lets the table move side-to-side to help your technicians install and remove batteries faster.
Challenger BT3300 3,300 lb. Ba...
$13,078.00
Need Help?
Replies within one business day
This lift table will help your shop and technicians prepare for the future of electric vehicle service.
- Scissor-style lifting
- Hydraulic cylinder
- Max reachable height 76.5”
- Easy maneuvering, thanks to pallet-jack style handle
- Extending, adjusting and tilting top plate
- 6º of angle adjustment
- Plugs in to any 120v outlet
- Power cord included
- Complies with ASME PASE-2019
| BT3300 | SPEC |
|---|---|
| Lifting Capacity | 3300 lbs. |
| Rise Height | 76.77″ |
| Collapsed Height | 29.53″ |
| Platform Adjust Height [S] | 1.77″ |
| Platform Length | 68.54“- 81.34″ |
| Platform Width | 31.50″ |
| Platform Height | 9.02″ (±1.77″) |
| Deck Length | “ |
| Base Height | 8.07″ |
| Wheel Diameter | 7.87″ |
| Overall length | 116.38″ |
| Motor | 2HP |
| Power supply | 110V-1Ph-60Hz |
| Current Draw | 14 Amps |
| Control voltage | 24V |
| Hydraulic Pressure | 3625psi |
| Safety Limit Switch | Yes |
| Full stoke time (Rated Load) | 45s / 70s |
| Full descent time (Rated Load) | 55s |
