Atlas BP8000 8000 lb Capacity Baseplate 2 Post Lift
$3,999.00

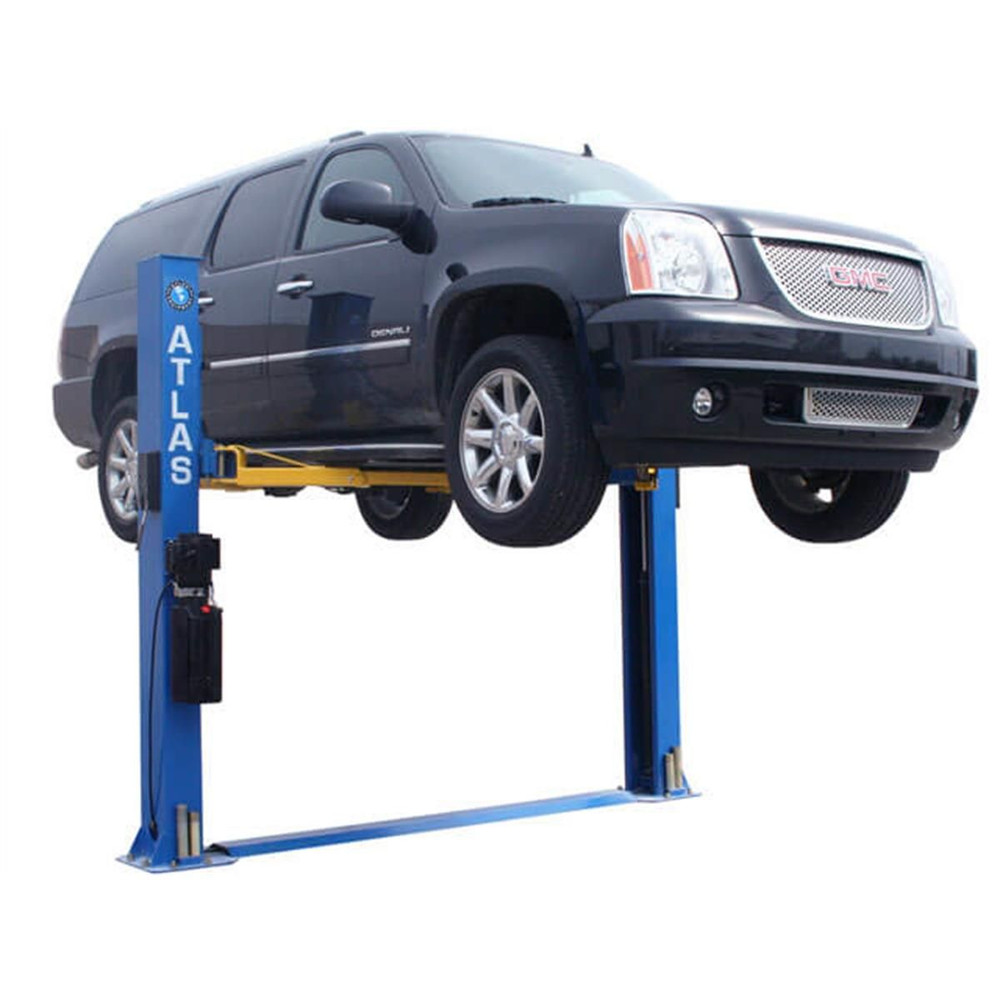

Atlas BP8000 8000 lb Capacity Baseplate 2 Post Lift
The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
Atlas BP8000 8000 lb Capacity ...
$3,999.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Atlas BP8000 8000 lb Capacity Baseplate 2 Post Lift
Features and Benefits:
- 8,000 lb. Capacity
- Hobbyist Grade Lift ‐ Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift
- 3-Stage front arms/2-Stage rear arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Double Safety Lock System
- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,300 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID
Atlas® ATTD-BP8000 Specifications
- Capacity 8,000 LB.
- Overall Height 108″ (9′)
- Overall Floor Width 132″ (11′)
- Outside Column to Outside Column 124″ (10′ 4″)
- Maximum Lift Height (Without Adapters) 75 1/2″
- Maximum Lift Height (With Adapters) 86 1/2″
- Minimum Arm Height 4″
- Inside Column 109 1/8” (9′ 1 1/8”)
- Drive Thru 99” (8′ 3”)
- Column Size 7 1/4″ x 11″
- Column Thickness of Steel 6mm
- Base Of Lift 17 1/2″ x 17 3/4″
- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,300 LBS.
- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4″ of concrete with a 3000 psi. rating
- Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
