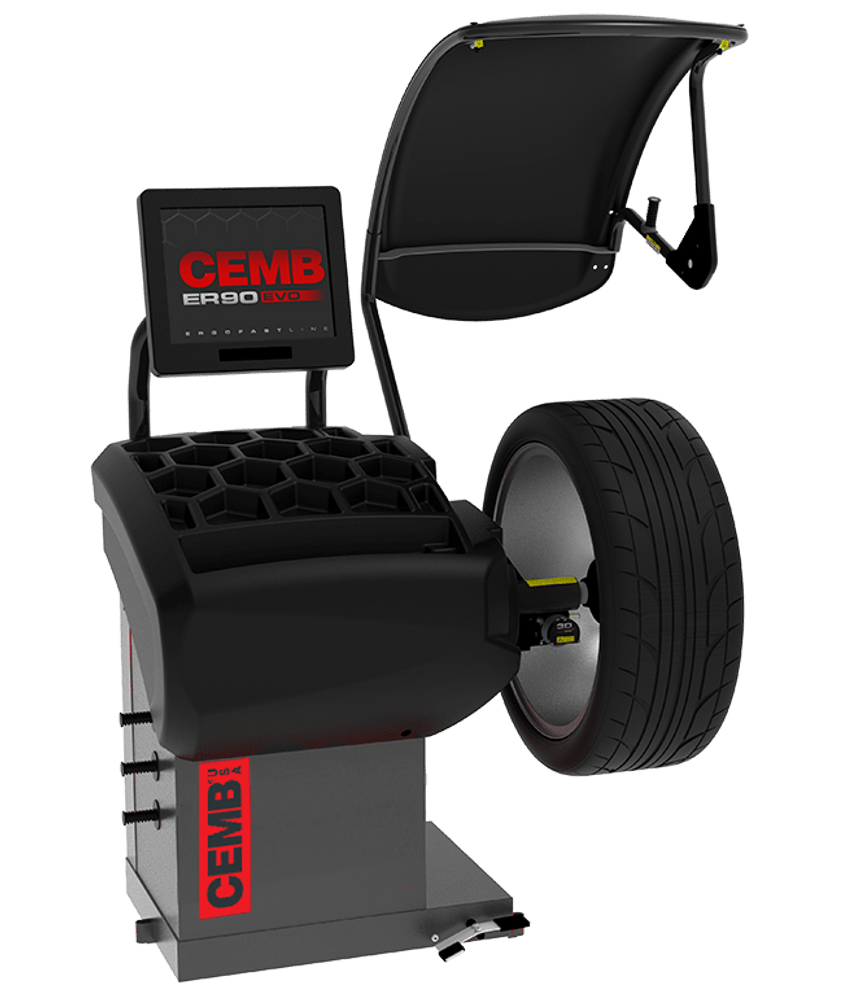

CEMB ER90 EVO Fully Automatic Balancer
$13,975.00
CEMB ER90 EVO Fully Automatic Balancer
The new ER90 EVO automatically detects wheel data simply pressing one single touch button and after a few seconds gives a clear and accurate indication of exact position to place counterweights (clip-on and/or stick-on weights)
CEMB ER90 EVO Fully Automatic ...
$13,975.00
Need Help?
Replies within one business day
CEMB ER90 EVO Fully Automatic Balancer
One Plane Balancing (OPB)
Auto Adaptive Mode
Hubmatch
Ergonomic Design
3D Laser Scan
Side Laser
Automatic Positioning System
Standard Features
CEMB’s AutoAdaptive Mode software measures the wheel’s weight and dimensions and then recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort. CEMB’s OPB (One Plane Balancing) program, 3D Laser Scan and HubMatch, clock the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o’clock position. All these features guarantee significant time savings during the balancing process. Also included is a TDC Laser (Top Dead Center) for steel rims.
Average 6-second cycle time includes automatic RFV* and wheel scanning performed during the balance cycle.
Dynamic AutoAdaptive OPB balancing automatically shifts to a single weight balance on over 70% of today’s wheels; gaining a 33%-time savings on every balance.
Made in Italy. Final assembly in USA.
220V, 1ph. +AIR
Radial Force Vectoring
Power Supply: 220V, 1ph, Air
Wheel Clamping Type: Pneumatic
Max. Rim Diameter: 30″ (765 mm)
Max. Rim Width: 20″ (510 mm)
Max. Tire Diameter: 42″ (1067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
Shipping Weight: 485 lbs. (220 kg)
