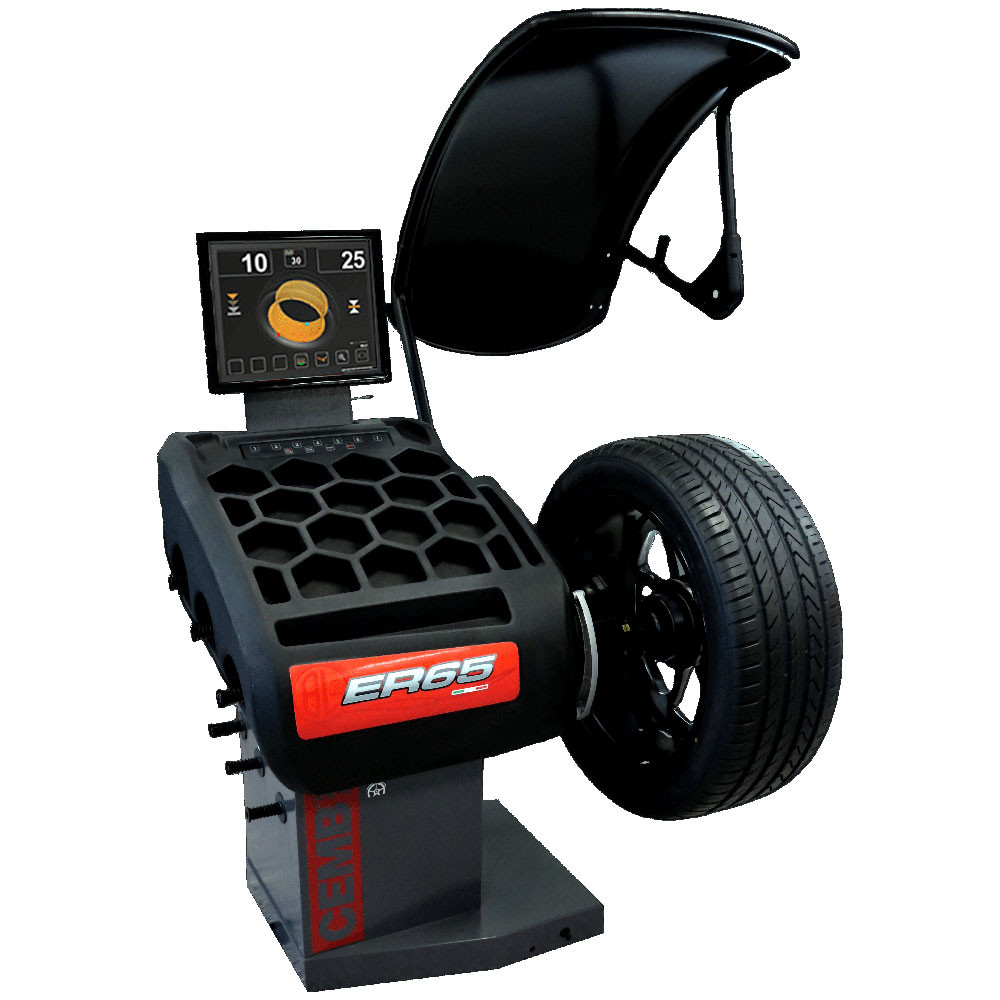

CEMB ER65 Automatic Balancing Machine with Monitor
$6,540.00
CEMB ER65 Automatic Balancing Machine with Monitor
A balancing machine with ample monitor and intuitive graphical display which, combined to its large ergonomic weight tray, conveys prestige to the tire shop and transmits a sense of efficiency and professionalism to end users.
CEMB ER65 Automatic Balancing ...
$6,540.00
Need Help?
Replies within one business day
CEMB ER65 Automatic Balancing Machine with Monitor
Ergonomic design
Detection of Wheel Data
Automatic Approach
Pneumatic locking of wheel (ER65SE)
LA Sonar
Adhesive counter-weights positioning with laser beam
The ErgoFast range of balancing machines has been developed to offer the operator the best possible working conditions.
The automatic gauge enables detection of distance and diameter (up to 28″ rims) with relative activation of desired balancing program (clip-on or stick-on weights).
Once the measuring launch is completed, thanks to the Automatic Approach system, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with a little movement.
Wheel locked in position for weight applications through electric brake and laser beam indicating position guarantee an easy and extremely quick balancing operation.
Two gas springs which produce a force of 551.2 lbs guarantee a quick and constant wheel locking. The 4 wheel tire set is balanced in the same conditions. (SE Version)
The LA sonar for width measurement enables an immediate entry of all necessary wheel data.
Specifications
Power Supply: 115V, 1ph
Wheel Clamping Type: Manual / Pneumatic
Max. Rim Diameter: 30″ (765 mm)
Max. Rim Width: 20″ (510 mm)
Max. Tire Diameter: 42″ (1067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
Shipping Weight: 300 lbs. (136 kg)
