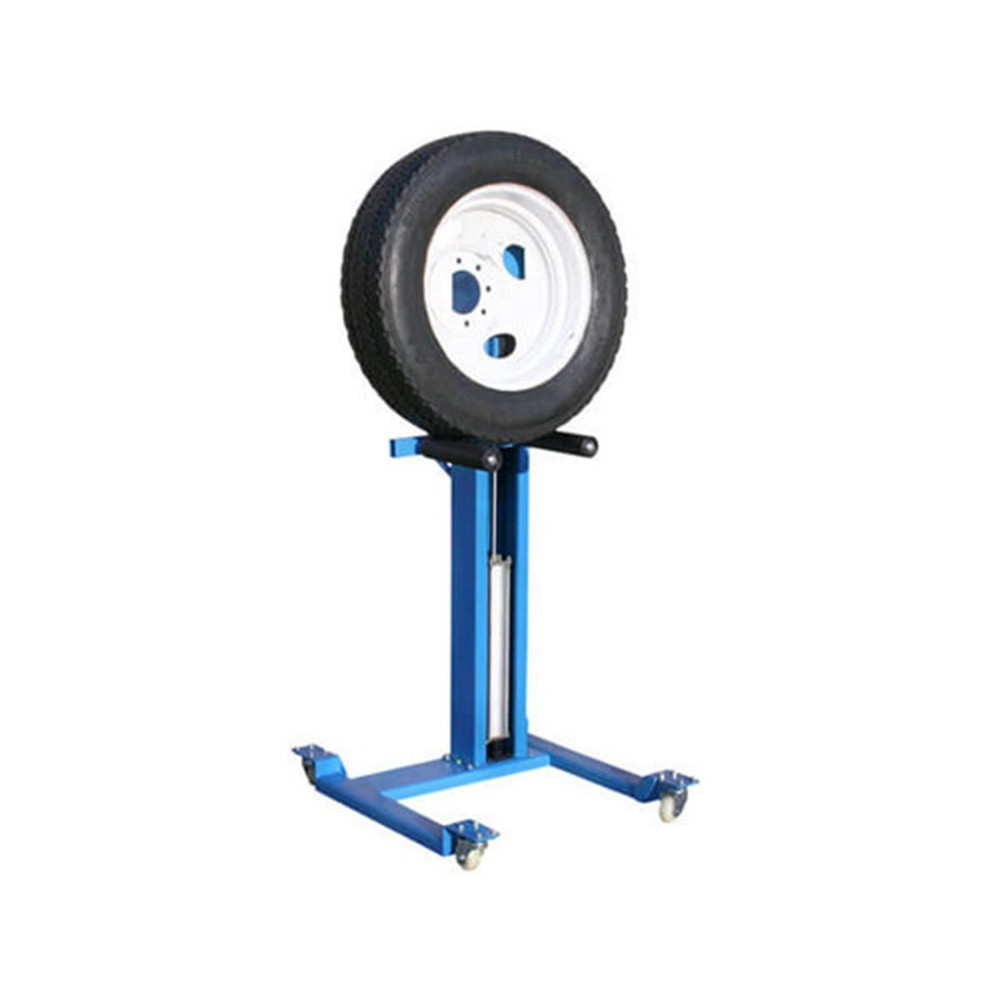

Atlas Portable Off-Center Wheel Lift

Atlas Portable Off-Center Wheel Lift

Features and Benefits:

Portable Wheel Lift w/ Off-Set Column

Air-Operated (external air supply required)

Lubricator Included

Heavy Duty Roller Arms

3″ Swivel Poly-Casters

90 Day Parts Only Warranty

This part number FREIGHT PREPAID

Capacity: 180 lbs

Max Lifting Height: 40 1/2″

Minimum Lifting Height: 5 1/2″

Arm Length: 12″

Distance between Arms: 10″

Overall Height: 67 3/4″

Air Requirement: 115-145 PSI

Shipping Weight: 175 lbs

The Atlas AEZWL-2 pneumatic portable wheel lift is the perfect solution to prevent back injuries when lifting large wheel assemblies. Similar to the AEZWL pneumatic wheel lift the AEZWL-2 can be used to mount wheels onto wheel balancers and tire changers but with the off-set column and the roller arms it can also be used to take-off and put-on wheels to a vehicle. The off-set column allows clear access to lugnuts for removal and tightening. The roller wheels allow easier positioning when putting the wheel assembly back on the vehicle.Today’s wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. The Atlas AEZWL-2 pneumatic wheel lift is the perfect solution, easily lifting a 180 pound wheel and allowing the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain.
