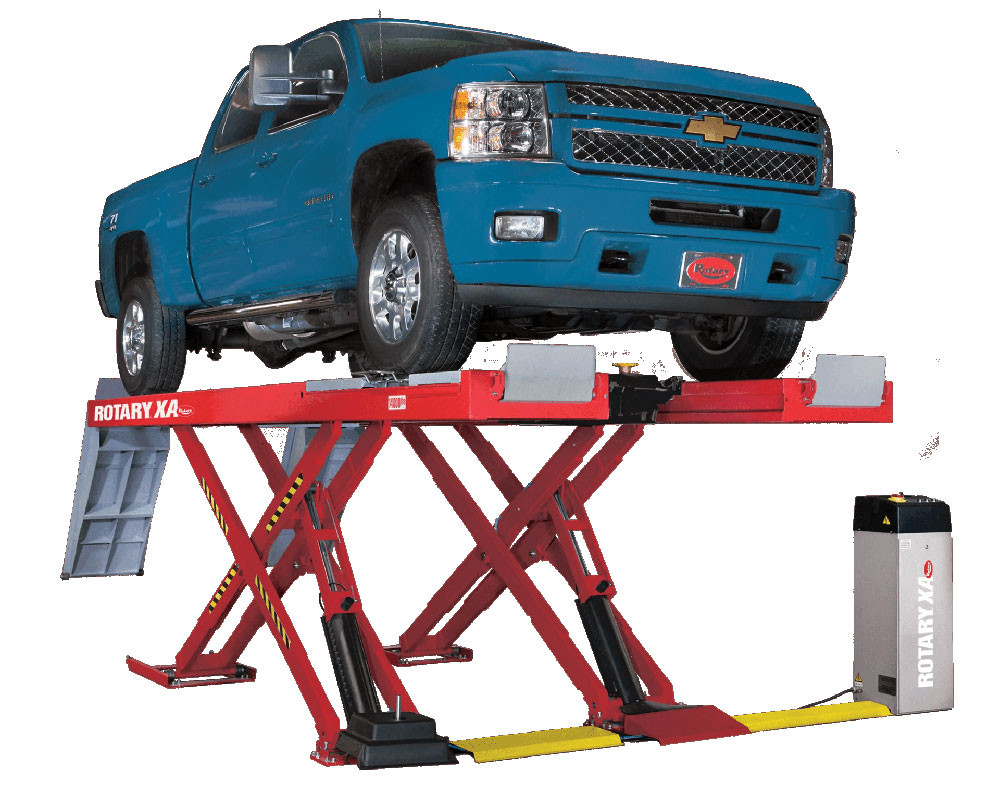

Rotary XA14 14,000 lb ALI Certified Alignment Scissor Lift + Rolling Jacks
$41,575.00
Rotary’s 14,000-pound alignment scissor lift offers an impressive 193-inch max wheelbase. The lift’s front radius gauge area has an extended, lengthened recess where multiple plates can be configured for vehicles with longer wheelbases, handling vehicles with wheel bases as little as 85.5 inches to larger trucks and vehicles up to 198 inches.
Rotary XA14 14,000 lb ALI Cert...
$41,575.00
Need Help?
Replies within one business day
- Open Access From Front to Rear
The scissor lift design offers open access from the front to the rear. With no obstructions, your technician has greater access to the vehicle’s adjustment points for alignments and other repairs.
- Multiple Installation Options Provide a Custom Bay
This scissor lift is available with floor-recessed or surface-mount installation, which allows you to customize your shop. Extended ramps and control hose extension kits provide ultimate in-location flexibility.
- VERSATILE WHEELBASE RANGE
216” long runways, oversized slip plates and easily adjusted radius gauge pockets accommodate a range of wheelbases.- 85 1/2” to 193” for FOUR WHEEL ALIGNMENT
- 195” MAX. TWO WHEEL ALIGNMENT
- 198” for GENERAL SERVICE
- 25-1/2” wide runways
- Air Actuated Rear Slip Plate Locks
- Includes: (2) 7,000 lb Rolling Jacks, Stainless Turntables, Locking Slip Plates, Air Line Kit
Product Specifications
| Model | XA14 |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Maximum Rise* | 81 1/2″ Surface Mounted |
| Lowered Height | 10-3/4″ (275mm) |
| Overall Length | 277″ (7035mm) |
| Overall Width | 91″ (2310mm) |
| Runway Width | 25-1/2″ (648mm) |
| Width Between Platforms | 40″ (1015mm) |
| Runway Length | 216″ (5486mm) |
| Max. Wheelbase | 198″ (5038mm) |
| Max. Two Wheel Alignment Max Four Wheel Alignment Min. Four Wheel Alignment | 195″ (4953mm)193″ (4902mm)85-1/2″ (2172mm) |
| Motor/Voltage | 5 hp / 230 volt / Single Phase |
| Time of Full Rise | 77 seconds |
| Lowering Time | 47 sceonds |
| Compressed Air Connection | 85-110 psi |
| Recommended Bay Size | 14′ x 27′ (4.27m x 8.23m) |
| * Rise measures floor to top of runway at full stroke. |
