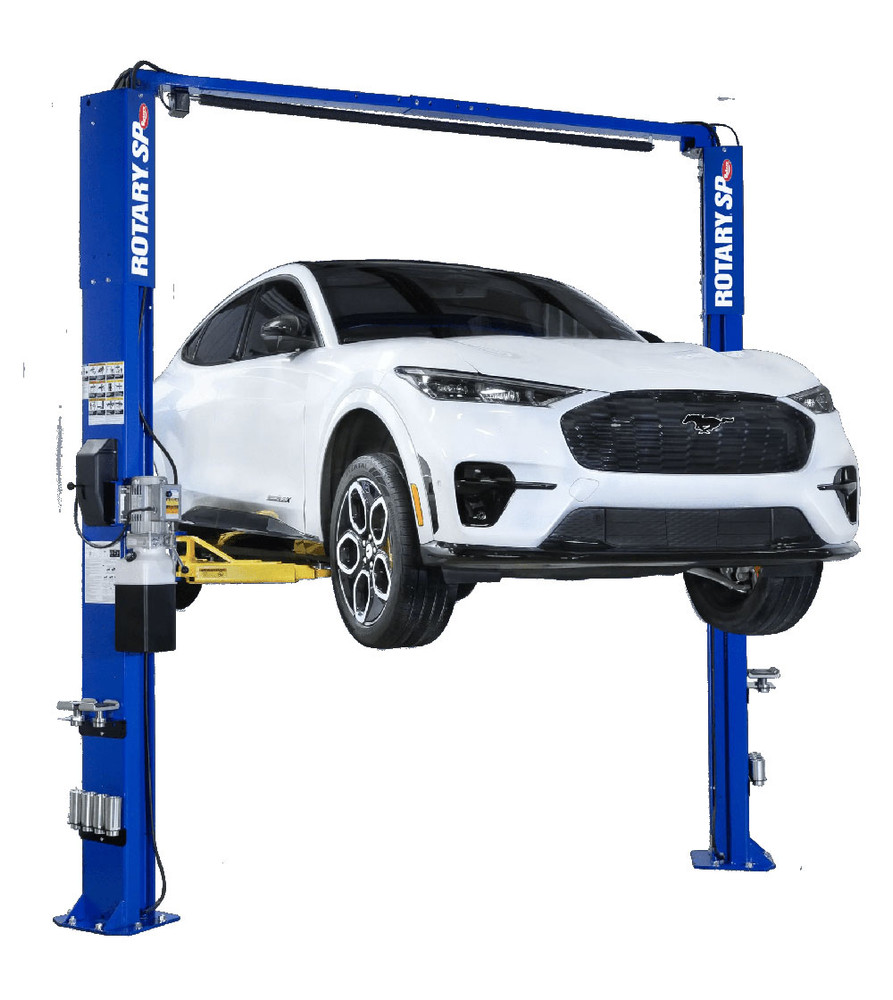

Rotary SPOA10-AV 10,000 lb. ALI Certified Two-Post Asymmetric Lift | All-Vehicle Lift Arms

$8,300.00

Introducing the ONE LIFT to service them all! The next evolution in automotive lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s best-selling asymmetric two-post lift, now featuring Rotary’s NEW All-Vehicle (AV) Lift Arms. Lift and service practically all roadgoing vehicles on ONE LIFT (within rated capacity).

ULTIMATE LIFTING VERSATILITY
With the shortest arm retraction and largest pickup range of any two-post lift, Rotary’s AV lift arms simplify your shop and give technicians the flexibility and clearance needed to service any vehicle.

EASY SPOTTING & POSITIONING
Rotary’s new AV Arms allow you to properly lift any vehicle on recommended OEM pickup points. Get more vehicles in the shop and on the lift faster with easy spotting and superior lifting capabilities.

THE LOWEST ADAPTER HEIGHT IN THE INDUSTRY
The outer arm and adapter height are the same measurement reducing any possibility the arm makes contact with vehicle underbodies.

PATENT-PENDING ALL-VEHICLE ARMS
Innovative design streamlines the arm for a simpler fine adjustment of the adapter while maintaining maximum reach and retraction. Engineered, high-strength tapered arm design allows for easier, faster positioning of adapters compared to traditional arm designs.

SKU: SB-5779 Categories: ,
Rotary SPOA10-AV 10,000 lb. ALI Certified Two-Post Asymmetric Lift | All-Vehicle Lift Arms — Steel Bay Automotive Supply Rotary SPOA10-AV 10,000 lb. AL...

$8,300.00

Free US Shipping

Free to all 50 states, liftgate freight included.

Secure Checkout

SSL-encrypted ordering and data protection.

Refundable Cores

Core deposits refunded in full when your old unit comes back.

No Restocking Fee

30-day returns on uninstalled parts.

Need Help?

sales@steelbayautomotivesupply.com
Replies within one business day

20% MORE REACH THAN 3-STAGE ARMS WITH THREAD-UP ADAPTERS

30% LARGER ARM SWEEP THAN CONVENTIONAL 2-STAGE ARMS WITH FLIP-UP ADAPTERS

SHORTEST ARM RETRACTION IN THE MARKET BY UP TO 9”

COMES STANDARD WITH ADJUSTABLE ROUND, TRUCK & STACKABLE ADAPTER EXTENSIONS Include two sets (four each) of 3 1/2” and 5 1/4” stackable adapter extensions with storage rack.



Product Specifications

Max rise (standard) 81 1/2″
Overall Height 11′ 11 1/2″
Overall Width 11′ 5 1/2″
Drive-Thru Clearance 95 1/4″
Inside Columns 107 1/4″
Front Arm Min/Max 18 1/2″ / 41″
Rear Arm Min/Max 27 5/8″ / 58 1/4″
Min Adapter Height 3 3/8″
Speed of Rise Standard Power: 45 seconds
Speed of Decent Standard Power: 40 seconds
Ceiling height required 12′
Min Bay Size 12’x24′
