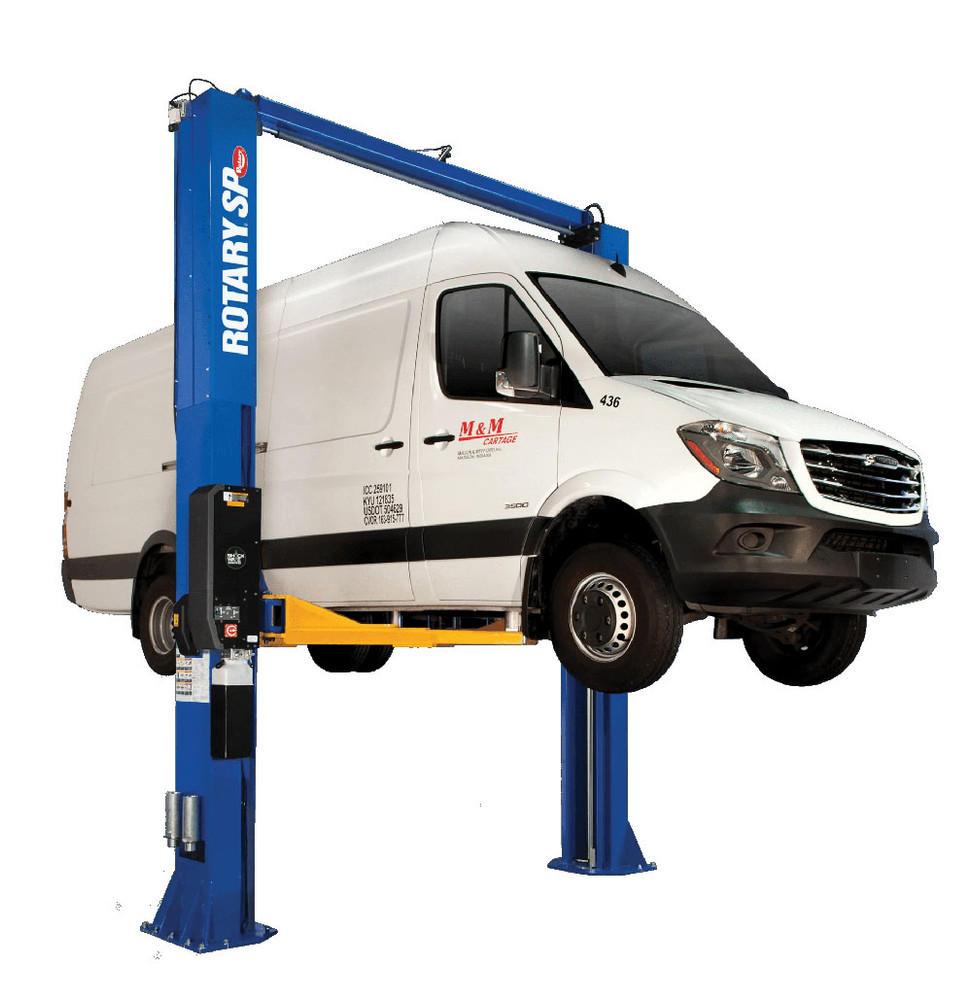

Rotary SPO16 CARGO 16,000 lb. ALI Certified Two-Post Symmetric Lift with 3-Stage Arms
$27,045.00
Rotary’s SPO16 lift combines patented lifting speeds with a high-capacity, low-profile stance. It features wider options and an extreme arm reach. These award-winning features and more can be found on our heavy-duty two-post lifts, including low-ceiling and extended-width models. You can rest assured that we have a lift for your job.
Legendary “Double S” Column Design
The exclusive Double-S column provides strength through design for every Rotary two-post lift. Its unique shape provides a secure channel for the carriage to operate smoothly both up and down.
True Symmetrical Lifting
Rotary’s SPO series lifts feature true-symmetric lifting designed for trucks and vans. The vehicle’s center of gravity is spotted directly between the structure, providing a smooth lift and plenty of room in front of the columns to open the truck and van doors.
HEAVY DUTY 3-STAGE ARMS FEATURE A GREATER SPOTTING RANGE FOR SPECIFIC PICKUP POINTS
Rotary SPO16 CARGO 16,000 lb. ...
$27,045.00
Need Help?
Replies within one business day
Three-stage arms for greater reach
• Original “Double S” column design
• 20 second lowering time
• Nationwide support
• ALI Gold Certified
Product Specifications
| Specification | SPO16Cargo-Standard | SPO16Cargo-Low Ceiling |
|---|---|---|
| Adapters | Truck / Optional Round Adapters | Truck / Optional Round Adapters |
| Capacity | 16,000 | 16,000 |
| Max Load (Per Arm) | 4000 | 4000 |
| Rise* | 80″ | 80″ |
| Height Configurations | Available in height increments of 6″ between 15′ to 16’6″, | Available in height increments of 6″ between 13’6″ to 14’6″ |
| Required Ceiling Height | 15’2″ – 16’8″ | 13’8″ – 14’8″ |
| Overall Width | 13’ 5” | 13’ 5” |
| Drive-Thru Width | 111 11/32” | 111 11/32” |
| Inside Columns | 126 15/32” | 126 15/32” |
| Front Arm Min/Max | 36-13/16″ – 74-13/16″ | 36-13/16″ – 74-13/16″ |
| Rear Arm Min/Max | 36-13/16″ – 74-13/16″ | 36-13/16″ – 74-13/16″ |
| Min. Adapter Height | 5-31/32″ | 5-31/32″ |
| Max. Adapter Height | 8-1/32″ | 8-1/32″ |
| Motor | 2 HP | 2 HP |
| Voltage | 208v-230v2 HP | 208v-230v2 HP |
| Full Rise/Decent Shockwave | 60 secs. | 60 secs. |
| Time of Full Rise | 81 seconds | 81 seconds |
| Min. Bay Size | 15’x30′ | 15’x30′ |
| * Contact factory for available widths, drive-thru clearance, inside column widths and arm reach. | ||
