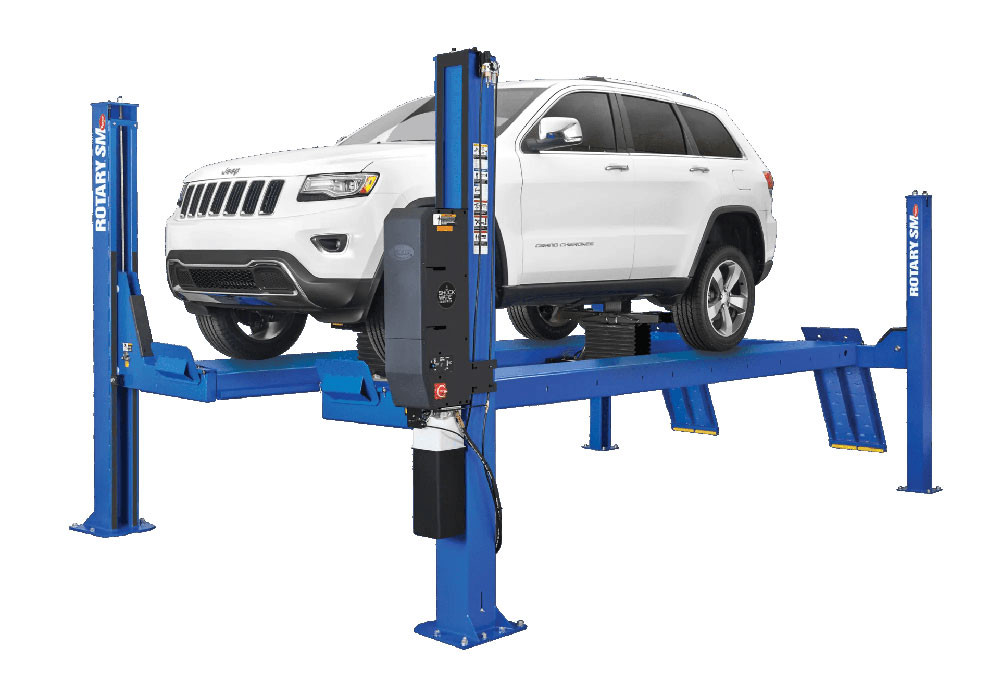

Rotary SMO14 14,000 lb ALI Certified Four-Post Open-Front Lift
$14,400.00
These lifts handle cars, vans, trucks—even light and medium-duty commercial vehicles with ease. If you service a wide variety of vehicles, the Rotary SMO14 four-post auto lift is the right choice for maximum productivity.
- Dual-Function Sentinel Lock™
All Rotary four-post lifts feature our patented Dual-Function Sentinel Lock system, which features a slack cable guide arm that rides with the cable and stays “on guard” to manage the lock latch should there ever be an unforeseen cable issue.
Rotary SMO14 14,000 lb ALI Cer...
$14,400.00
Need Help?
support@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
- Single Piece 20” Runways
- Air Operated Lock Release
- Adjustable Lock Ladders Keep Lift Level
- Louvered Ramps with Polymer Rollers
- Air Filter / Regulator / Lubricator
- Powder-Coated Hammer Tone Paint
- Converts to a Drive-Thru Lift
- Rolling Jacks Sold Separately
Product Specifications
| Model | SMO14-L | SMO14-EL |
|---|---|---|
| Max Wheelbase | 182″ | 215″ |
| Rise | 78 3/4″ | 78 3/4″ |
| Length Overall | 21′ 1″ | 23′ 10″ |
| Width Overall | 11′ 8 1/2″ | 11′ 8 1/2″ |
| Inside of Columns | 116 1/4″ | 116 1/4″ |
| Between Columns | 194 3/4″ | 227 3/4″ |
| Height of Columns | 9′ 1 1/16″ | 9′ 1 1/16″ |
| Width of Runways | 20″ | 20″ |
| Height of Runways | 7″ | 7″ |
| Width Between Runways (min.) | 43″ | 43″ |
| Width Between Runways (max.) | 43″ | 43″ |
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. |
| Motor | 2 HP | 2 HP |
| Voltage Single Phase | 208v-230v | 208v-230v |
| Time of Full Rise | 65 seconds | 65 seconds |
| Min. Bay Size | 15’x26′ | 15’x28′ |
