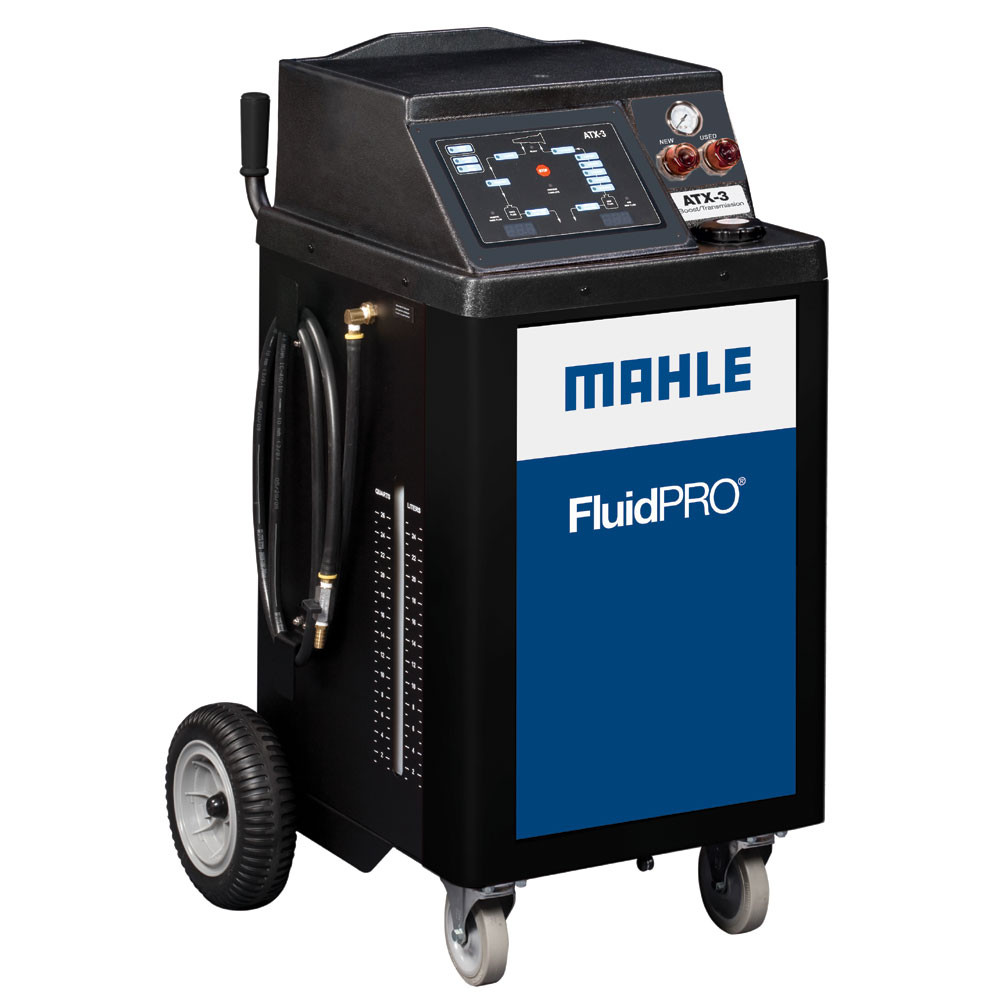

Mahle FluidPRO ATX-3 and Boost Transmission Fluid Exchange System

Adapters Cooler line connection. Valved couplers for minimum spill. Standard adapters for Ford, GM, Chrysler, & Universal (most Asian).

Controls Microprocessor with digital keypad & light emitting diodes

Dimensions (H x W x D) 45 in x 28 in x 26.5 in (112 cm x 70 cm x 67 cm)

Fluid Tanks / Types 26 quarts (24.6 liters) each for both new & used fluids / Multiple fluid capability

Hoses 10 ft. (3 m) black & red (exchange); 8 ft. (2.5 m) black (empty used tank) ATX-3+Boost also includes 5 ft. (1.5 m) clear, attached to 8 ft. (2.5 m) lack hose for dipstick mode.

New Fluid Pump Positive displacement gear pump, 4 quarts (3.8 liters) per minute/includes diaphragm pump, 7.2 quarts (6.84 liters) per min. Diaphragm pump increases fluid suction rate in low-flow/temperature controlled transmission in both ATX-2+Boost & ATX-3+Boost units.

Operating Range Cooler Mode: 32° to 122°F (0° to 50°C) Dipstick Mode: 42° to 122°F (5.5° to 50°C)

Power Source 12 VDC – 10 Amp

Process Time 3 to 6 minutes average full exchange. Dipstick Mode is available on the ATX-3+Boost with 8 to 14 minutes* average full exchange.

Scale Accuracy ±0.03% over usable range

Warranty 1 Year–parts & labor

Weight ATX-2+Boost: 242 lbs. (110 kg) / ATX-3+Boost: 244 lbs. (111 kg)

Based on 12 quart exchange
