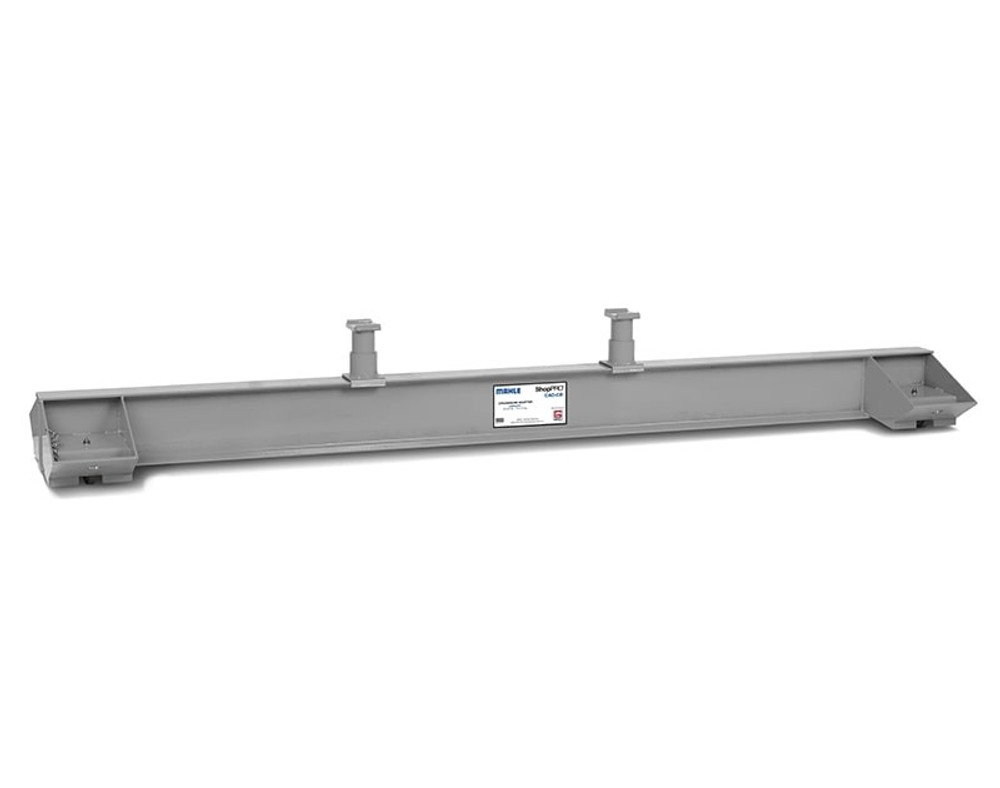

Model Number: CAD-CB | Part Number: 485 80112 00
- Maximum Capacity 32,000 lbs / 14,515 kg
- Overall Length 137 in / 348 cm
- Overall Width 31.5 in / 80 cm
- Minimum Starting Height 19 in / 48.3 cm
- Height from Top Beam to Lift Pad 8.1 in / 20.6 cm
- Lift Pad Size 4.0 in X 4.5 in / 10.1 cm X 11.4 cm
- Lift Pad Rotation 360°
- Minimum Lift Pad Spread-Center to Center 25 in / 63.5 cm
- Maximum Lift Pad Spread-Center to Center 109.5 in / 278.3 cm
- Ground Clearance 0.9 in / 2.3 cm
- Caster Diameter 4 in / 10.1 cm
- Shipping Weight 560 lbs / 254 kg
