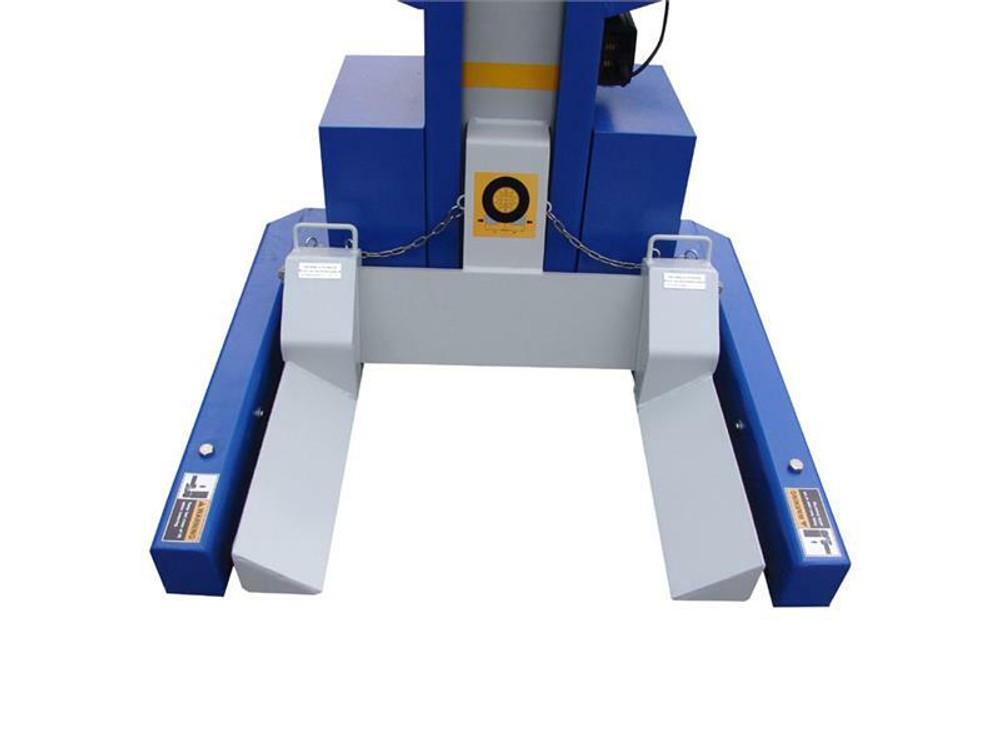

iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.
$54,270.00
The MSC-13K-B can be purchased in sets of 2, 4 or 6 columns with a total capacity up to 78,000 lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows safe lifting of passenger cars, light pick up trucks when using optional accessories and up to a school bus or fire truck in the standard configuration.
iDEAL MSC-13K-B-678 Mobile Col...
$54,270.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Features
- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting
- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Operable from any column
- Direct drive hydraulic cylinder
- Battery operated with onboard charging system
- Easily moved for use in multiple bays
- Can be stored out of the way when not in use to maximize work space
- Requires hydraulic oil before use (Not included)
- Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column
Click here for Product Manual and Installation
Specifications
| Lift Models | MSC-13K-B-678 |
| Column Configurations | 6 Column |
| Capacity | 78,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Heights – Min/Max | Min. 88.6″ / Max 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 6.3″ – 22″ |
| Fork Length | 14″ |
| Fork to Column Clearance | 9.3″ |
| Rise Time | 75S |
| Descent Time | 60S |
| Maximum Distance between Columns | 32.8′ |
| Minimum Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight | 1,210 lbs per Column |
