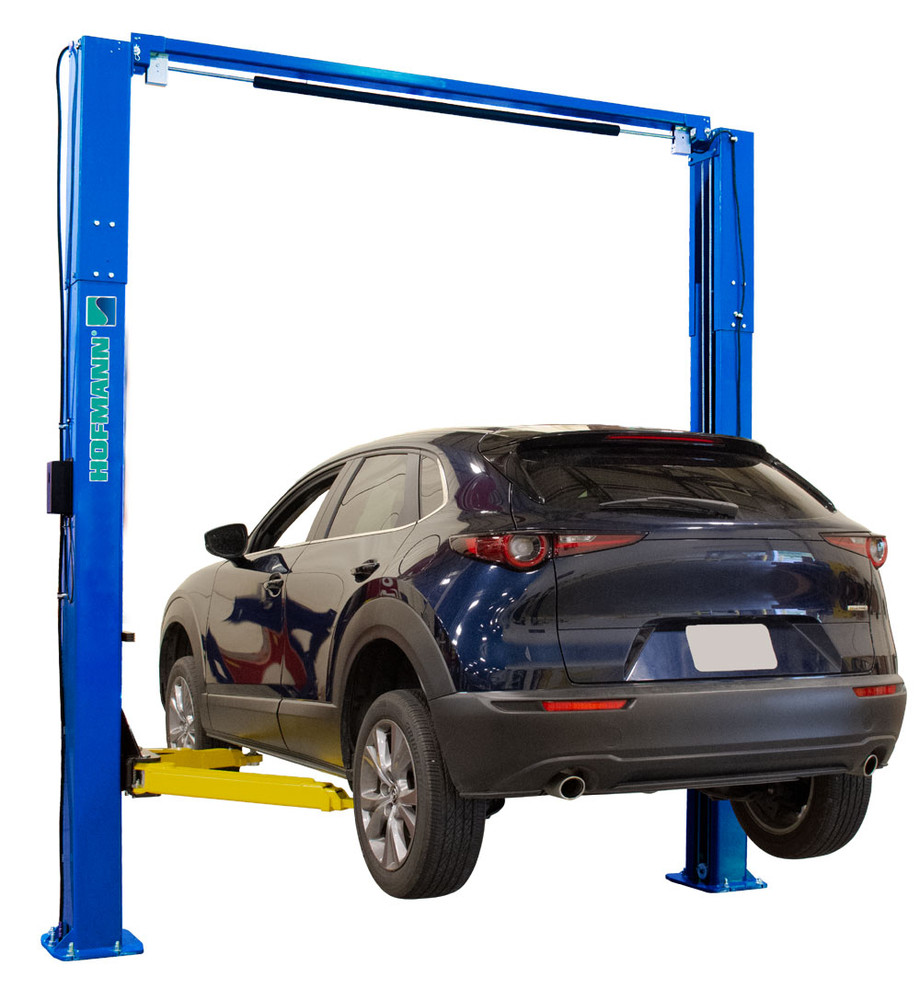

Hofmann EELR731A 10,000 lb. ALI Certified Symmetric / Asymmetric Two-Post Lift
$5,495.00
The Hofmann® 10k 2-Post automotive/general-purpose lifts feature robust industrial-grade columns and lift carriage slides with minimal friction. Additionally, their components are engineered for longevity, featuring plated arm pins, steel pulleys, and more. They offer the added advantage of being able to handle vehicles in both symmetric and asymmetric configurations, illustrating their remarkable versatility and adaptability to a wide array of automotive service opportunities.
Hofmann EELR731A 10,000 lb. AL...
$5,495.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Asymmetric
Configuration
Configuration
10,000 lbs. | 4,536 kg
Lifting Capacity
40 seconds
Lifting Time
78″ | 198cm
Max. Lifting Height
Extended: 14’x24′ | 427x732cm
Minimum Recommended Bay Size WxL Extended
Standard: 14’x24′ | 427x732cm
Minimum Recommended Bay Size WxL Standard
Extended: 162″-172″ | 411-437cm
Overall Height Extended
Standard: 138″-148″ | 351-376cm
Overall Height Standard
132″ | 335cm
Overall Width
90-120 PSI | 6-8 BAR
Air Supply Required
208-230V 60Hz 1Ph 2HP / 1.5kW
Power Supply
