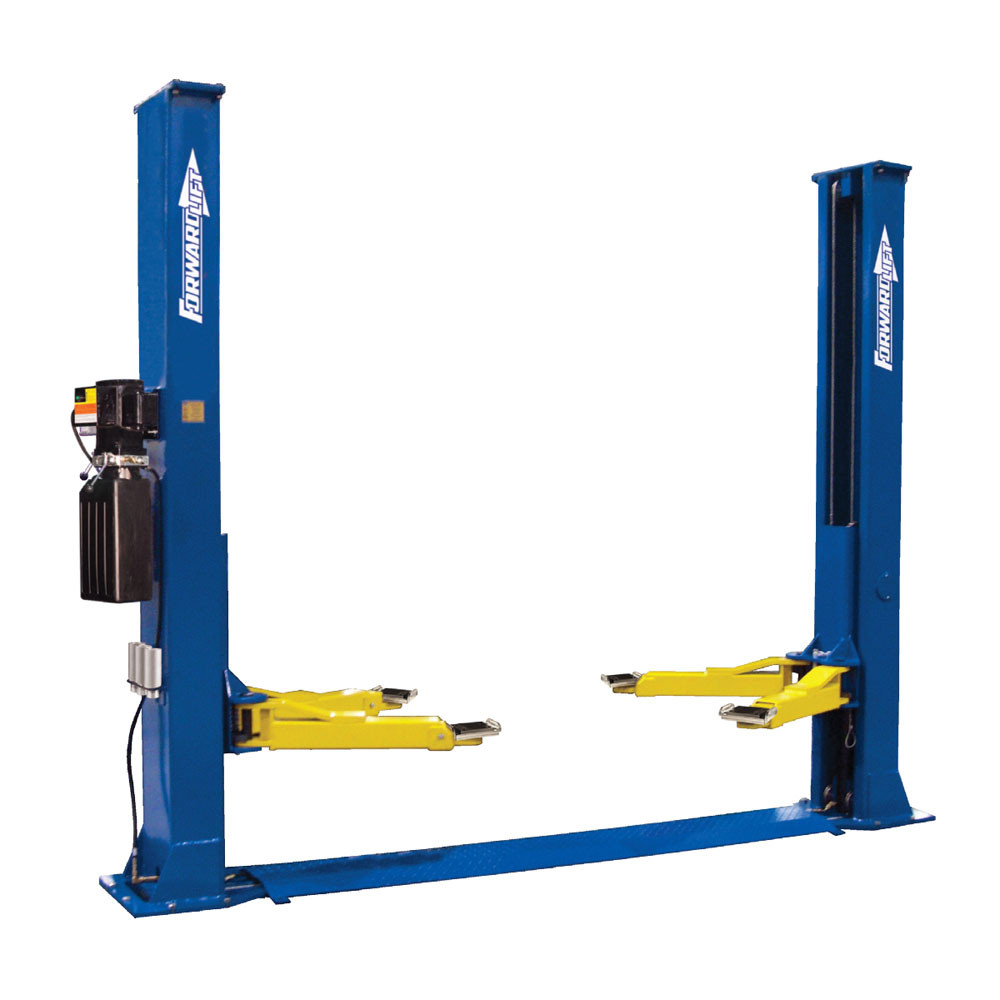

Forward Lift BP-9 9,000 lb ALI Certified Two-Post Lift
$6,415.00
BP9 Two-Post Lift Features:
The BP9 9,000 lbs. capacity lift is perfect for customers who need a two-post lift and have low ceilings. The BP9’s overall height is 111 1/4 inches tall. That means it will fit, even if you have 10 foot ceilings. The BP stands for base plate indicated by the steel plate that run between the two columns of the lift. This plate protects the cables that would normally run overhead on any other two-post lift. This allows for shorter columns, hence the lower ceiling height requirement.
This is a commercial grade car lift and should not be confused with any other cheap two-post vehicle lift. This is a Forward Lift® so it has been engineered to perform and built to last!
Forward Lift BP-9 9,000 lb ALI...
$6,415.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Additional Features:
- Dual hydraulic cylinders
- Low-Profile Threaded Adapters
- Carriage latch system – engages every 3″
- Secondary lock system includes a spring actuated slack chain locking device
- Adapter extensions included
- Powder coat, oven baked finish
Specifications
| Specifications | BP9113000 |
| Total Capacity | 9,000 lbs. (4082kg) |
| Overall Height | 111-1/4″ (2826mm) |
| Overall Width | 138-1/2″ (3518mm) |
| Rise With Extensions | 80-1/2″ (2045mm) |
| Rise Without Extensions | 72″ (1829mm) |
| Drive Through Clearance | 97-1/4″ (2470mm) |
| Width Inside Columns | 111″ (2819mm) |
| Arm Reach (Min./Max.) | 30″/46-1/4″ (762mm/1174mm) |
| Minimum Adapter Height | 4-1/2″” (114mm) |
| Drive-Over Height | 1-1/2″ (38mm) |
| Voltage/Amps | 208/230, 20 Amps |
| Motor | 2 HP/1Ø* (38mm) |
| Minimum Ceiling Height | 113″ (2870mm) |
| *Optional 3-Phase available. | |
