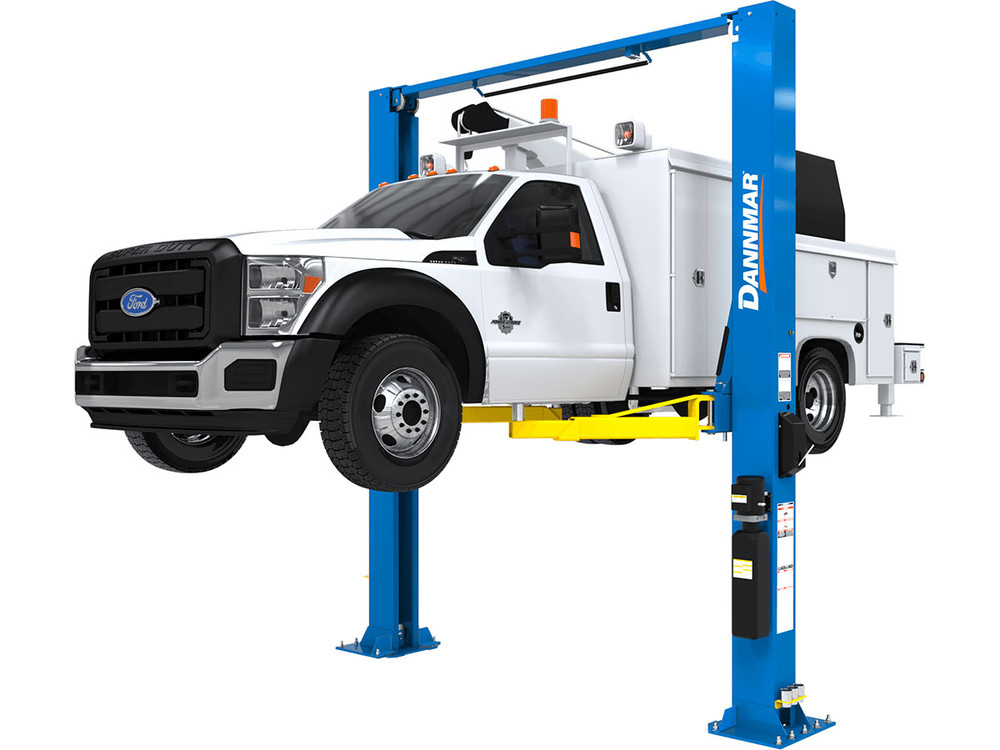

Dannmar D2-15C Symmetric Clearfloor 15,000-lbs. Capacity ALI Certified Two-Post Lift
$9,311.00
With Dannmar’s very capable D2-15C two-post, lifting an unusually heavy vehicle is not a problem. The telescoping arms on this Dannmar two-post lift can safely support and lift up to 15,000 lbs. with industrial grade hydraulic cylinders. Lift movement is sped up with Dannmar’s high-speed hydraulics free-flow, high-pressure 3/8” hydraulic lines, a high-low pump and integrated AC power-unit. The D2-15C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups. The clearfloor arrangement routes the hydraulic lines across the top horizontal beam leaving the floor below unobstructed to roll floor jacks, tool boxes, and other equipment.
Dannmar D2-15C Symmetric Clear...
$9,311.00
Need Help?
Replies within one business day
Features
- 15,000-lb. lifting capacity
- Padded overhead safety shutoff bar
- Extended height top-beam provides greater clearance
- Single-point safety release
- Dual direct-drive hydraulic cylinders
- Dual-synchro equalization system for equal lifting
- Oversized 53” tall carriage for superior strength
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating Dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- Multi-piece adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
- Convenient storage is included for truck and van adapters
- Versatile drop-in contact pads with stackable adapters
Specs
| Style | Asymmetric |
|---|---|
| SKU# | 5175313 |
| Lifting Capacity | 15,000 lbs. (6,804 kg) |
| A – Lowered Height + Pad | 6.5″ (108 mm) |
| B – Max. Lift Height (Top Lock) | 83″ (2,032 mm) |
| C – Max. Rise | 69″ (1,753 mm) |
| D – Height Overall | 168.75″ (4,286 mm) |
| E – Width Overall | 155.25″ (3,943 mm) |
| F – Width Outside Columns | 142.5″ (3,620 mm) |
| G – Width Inside Columns | 119.5″ (3,035 mm) |
| H – Drive-Thru Clearance | 105” (2,663 mm) |
| I – Floor to Top Switch | 162.75” (4,131 mm) |
| J – Arm Reach | 37.25″ (946 mm) – 58” (1,473 mm) |
| Max. Load per Arm | 3,750 lbs. (1,701 kg) |
| Time to Full Rise | 55 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
