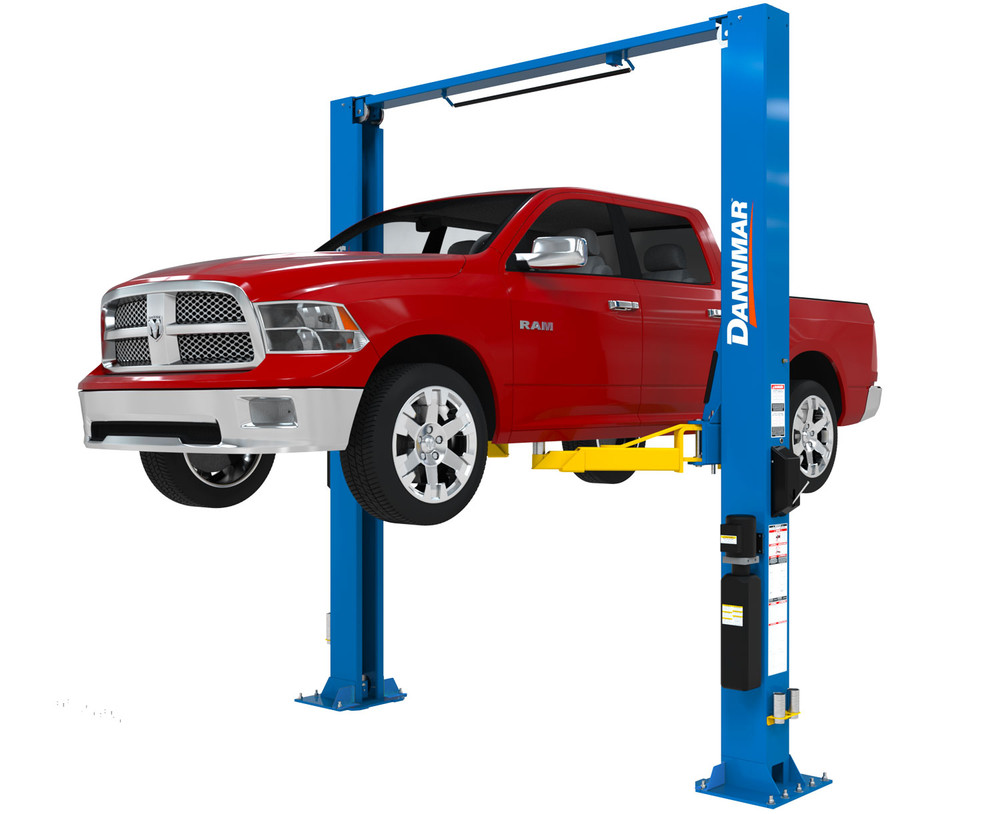

Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms
$7,809.00
Dannmar’s D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups.
Dannmar D2-12C Symmetric 12,00...
$7,809.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Features
- Dual direct-drive hydraulic cylinders
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- Dual-synchro equalization system for equal lifting
- Padded overhead safety shutoff bar – Extended height top-beam provides greater clearance
- Single-point safety release
- Oversized 53” tall carriage for superior strength
- Electric/hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating Dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- 16-piece specialty adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads – Convenient storage is included for truck and van adapters
- Triple-telescoping arms provide increased range
Specs
| Style | Symmetric |
|---|---|
| SKU# | 5175312 |
| Lifting Capacity | 12,000 lbs. (5,443 kg) |
| A – Lowered Height + Pad | 4.25″ (108 mm) |
| B – Max. Lift Height (Top Lock) | 80″ (2,032 mm) |
| C – Max. Rise | 69″ (1,753 mm) |
| D – Height Overall | 168.75″ (4,286 mm) |
| E – Width Overall | 155.25″ (3,943 mm) |
| F – Width Outside Columns | 142.5″ (3,620 mm) |
| G – Width Inside Columns | 119.5″ (3,035 mm) |
| H – Drive-Thru Clearance | 105” (2,663 mm) |
| I – Floor to Top Switch | 162.75” (4,131 mm) |
| J – Arm Reach | 31.5″ (800 mm) – 58” (1,473 mm) |
| Max. Load per Arm | 3,000 lbs. (1,361 kg) |
| Time to Full Rise | 55 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
