Challenger EW1220 12000 lb ALI Certified Wide Inground Car Lift
$21,887.00
Challenger EW1220 12000 lb ALI Certified Wide Inground Car Lift

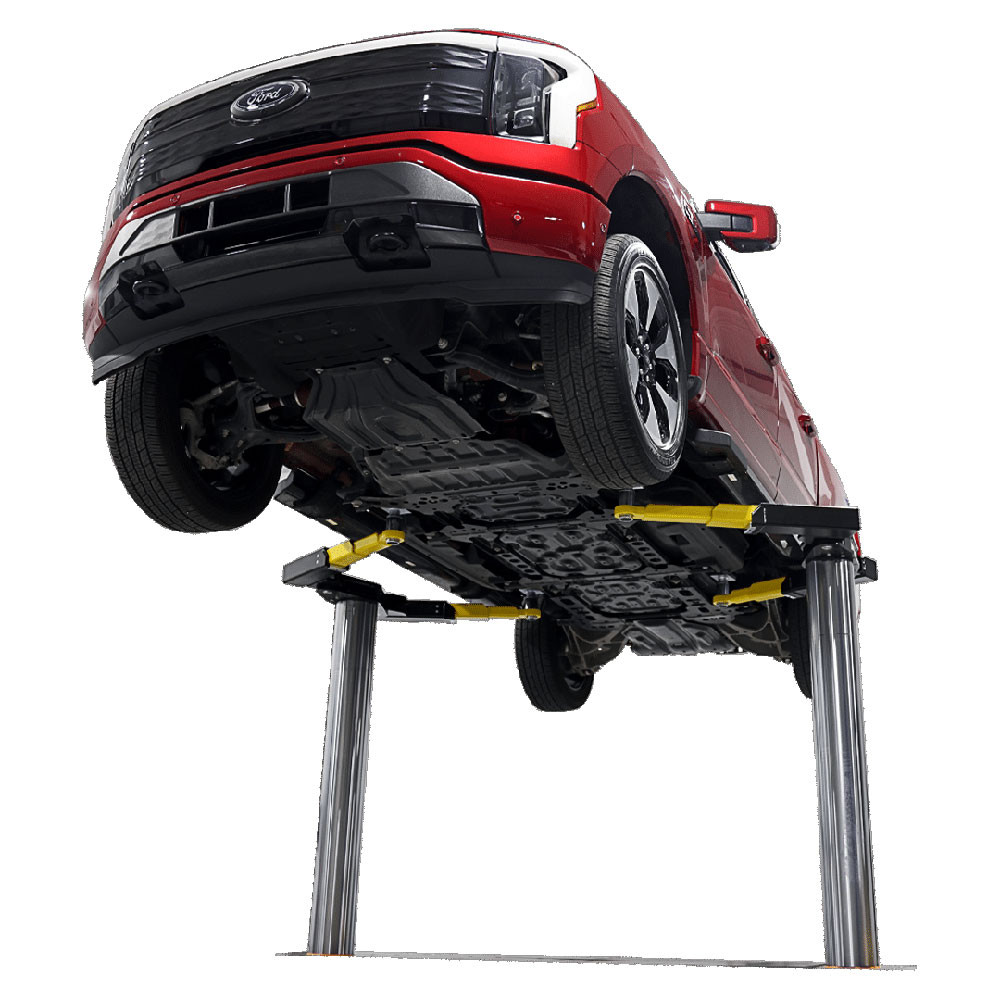

Our 12,000 lbs. hydraulic inground lift provides an extra-wide drive-through clearance for servicing wide-bodied and electric vehicles. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage arms and double-telescoping screw pads. Bench-mounted controls are optional.
Challenger EW1220 12000 lb ALI...
$21,887.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Challenger EW1220 12000 lb ALI Certified Wide Inground Car Lift
- 3-Stage Front & Rear Arms
- 88″ Drive-Thru clearance
| Model Number | EW1220 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Capacity per Arm | 3,000 lbs. |
| Arms | 3-stage front/3-stage rear |
| Screw Pad Height | 4” – 6.125” |
| Arm Reach | 20″ – 48.5″ |
| Stroke | 72” |
| Rise Height | 78” |
| Drive-Thru Clearance | 88” |
| Width Overall | 121.5″ |
| Speed of Rise | 63 s |
| Air Required | 90 – 120 psi |
| Super Structure Colors | Red, Blue, Black |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| ALI/ETL Certified | Yes |
