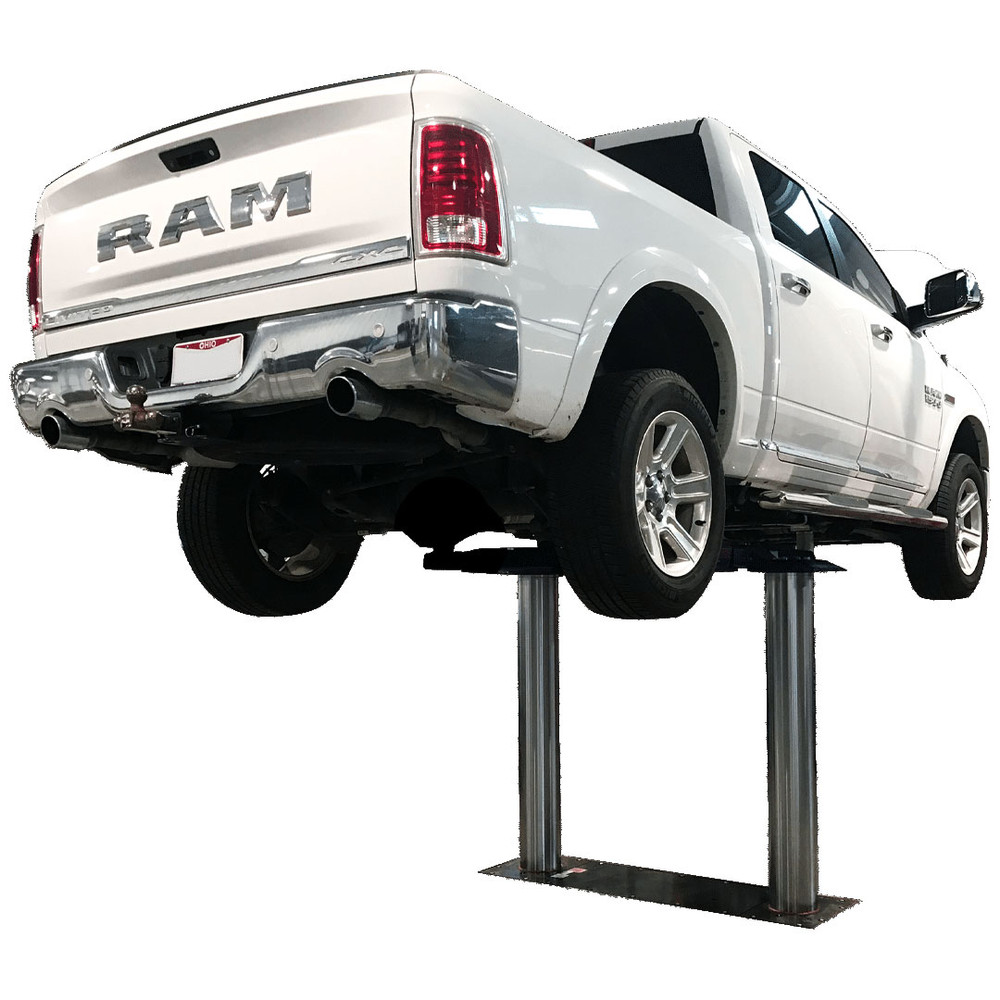

Challenger EV1220 12000 lb ALI Certified Heavy Duty Inground Car Lift
$13,324.00
Challenger EV1220 12000 lb ALI Certified Heavy Duty Inground Car Lift
Challenger’s electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We’ve also added our time-tested productivity tools, including Quick Cycle Technology and Bench Mount Controls to boost your efficiency.
Challenger EV1220 12000 lb ALI...
$13,324.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
Challenger EV1220 12000 lb ALI Certified Heavy Duty Inground Car Lift
- 12,000 lb. lift capacity
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3? allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability
| Model Number | EV1220 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Arms | 3-stage front/3-stage rear |
| Stroke | 68” |
| Rise Height | 80.75” |
| Width Overall | 115” |
| Drive-Thru Clearance | 87” |
| Reach (Arm Minimum) | 19.625” |
| Reach (Arm Maximum) | 48” |
| Screw Pad Height | 5” – 6.75” |
| Capacity | 3,000 lbs. per arm |
| Guide Plunger Diam. | 8.5” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 60 s |
| Air Required | 90 – 120 psi |
| ALI/ETL Certified | Yes |
| Super Structure Colors | Red, Blue, Black |
