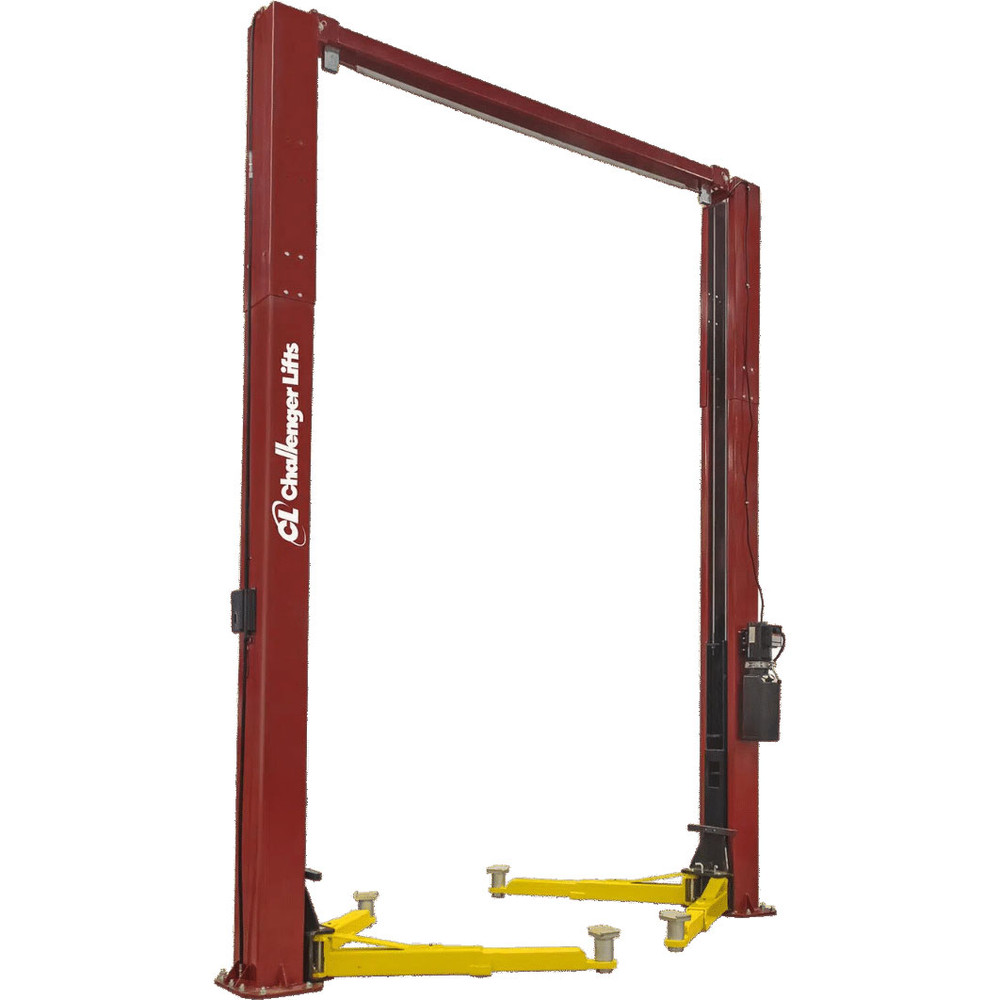

Challenger E15 15,000 lb. ALI Certified Heavy Duty Symmetric Two-Post Lift
$14,166.00
We designed our new E15 2-post lift to be an economic option for servicing vehicles up to 15,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Includes a built-in 2 foot column height extension to accommodate higher profile vehicles. The E15 also comes standards with stack adapters.
This lower cost option doesn’t sacrifice the features you’ve come to expect. The jacketed single-point mechanical lock release system was once exclusive to our CL Series.
Challenger E15 15,000 lb. ALI ...
$14,166.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
- 15,000 lb. lift capacity
- Heavy-duty 2-stage arms enable heavy-duty symmetric lifting
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series
- Padded overhead shut off system prevents vehicle damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
| Model Number | E15 |
|---|---|
| Lifting Capacity | 15,000 lbs. |
| Arms | 2-stage front/2-stage rear |
| Lifting Configuration | Symmetric |
| Rise Height | 6′ 5.75″ |
| Overall Height | 14′ 6 / 16′ 6′ |
| Overall Width | 12′ 13″ |
| Drive-Thru Clearance | 9′ 1.375″ |
| Floor to Overhead Switch | 13′ 10″ / 15′ 10″ |
| Minimum Arm Reach | 36.5” |
| Maximum Arm Reach | 55” |
| Screw Pad Height | 5.25”-6.75” |
| Ceiling Height Required | 14′ 7″ / 16′ 7″ |
| Motor / Voltage | 2HP, 208v – 230v |
| Speed of Rise | 75 s |
| ALI/ETL Certified | Yes |
| Colors Available | Red, Blue |
