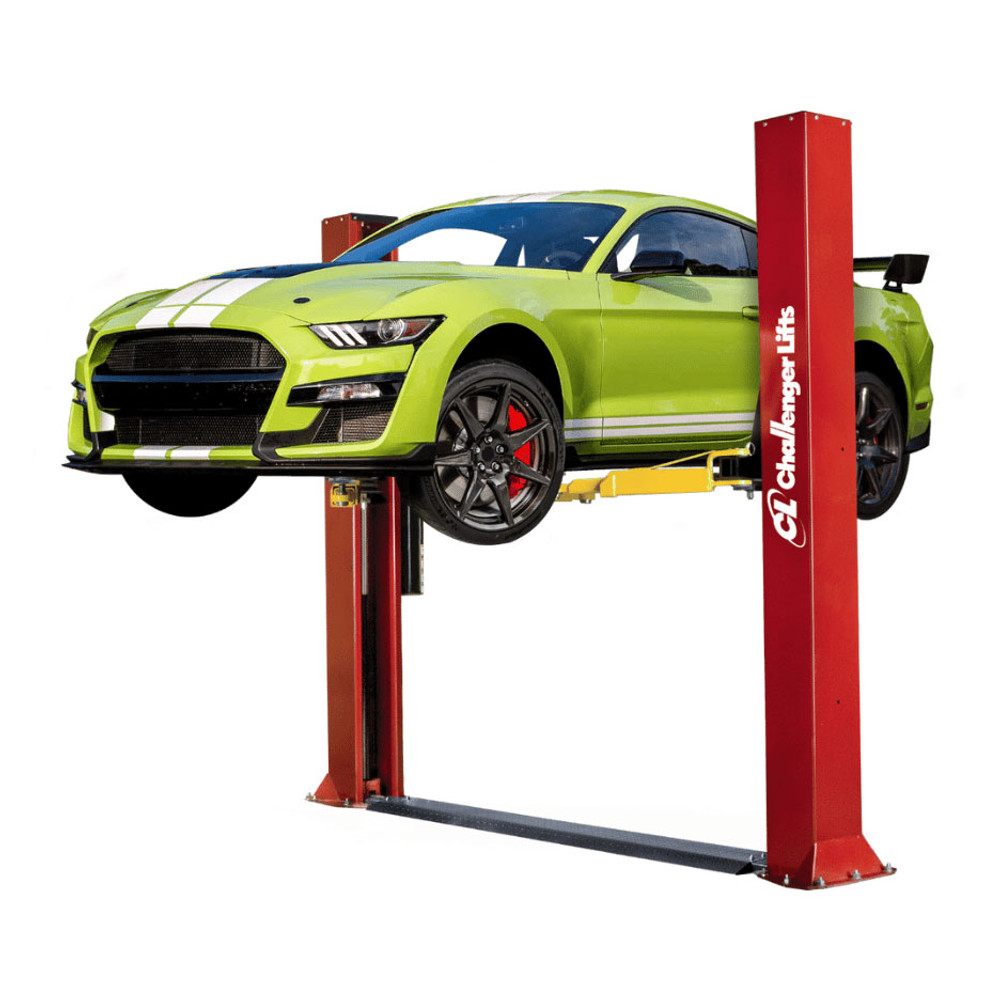

Challenger CLFP9 9,000 lb. Symmetric Two-Post Lift / Open-Top / Floor Plate
$7,051.00
With a 9,000 lb. capacity and 10’ 7/8” overall column height, Challenger’s CLFP9 2-post is ideal for low ceiling applications. 3-stage front and 3-stage rear arms provide maximum sweep, arm retraction and reach. A low-profile drive-over floor plate allows for easy vehicle positioning, which makes it great for home enthusiast garages or professional service shops. The CLFP9 also features double-telescoping screw footpads, a durable powder coat finish and plated arm pins.
Challenger CLFP9 9,000 lb. Sym...
$7,051.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
- 9,000 lb. lift capacity
- 10’ 7/8” overall column height is ideal for servicing vehicles in a low ceiling height
- Low profile drive-over floor plate for easy vehicle positioning
- 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
- Electric/hydraulic heavy-duty chain lifting operation with cable equalization to reduce ceiling height requirement
- Dual-point mechanical pull-lock cable release system
- Fully gusseted base plate design increases column rigidity
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
| Model Number | CLFP9 |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Lifting Configuration | Symmetric |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 78.125” |
| Overall Height | 120.875“ |
| Overall Height (Cylinder Extended) | 120.875“ |
| Overall Width | 137.5“ |
| Drive-Thru Clearance | 98.187“ |
| Floor to Overhead Switch | – |
| Front Arm Reach | 24.5“ / 44.5“ |
| Rear Arm Reach | 24.5“ / 44.5“ |
| Screw Pad Height | 4” / 5.875“ |
| Inside Columns | 109” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 50 s |
| Ceiling Height Required | 10’ 2“ |
| ALI/ETL Certified | – |
| 2’ Height Extension Available | – |
| 3’ Height Extension Available | – |
| Colors Available | Red, Blue |
