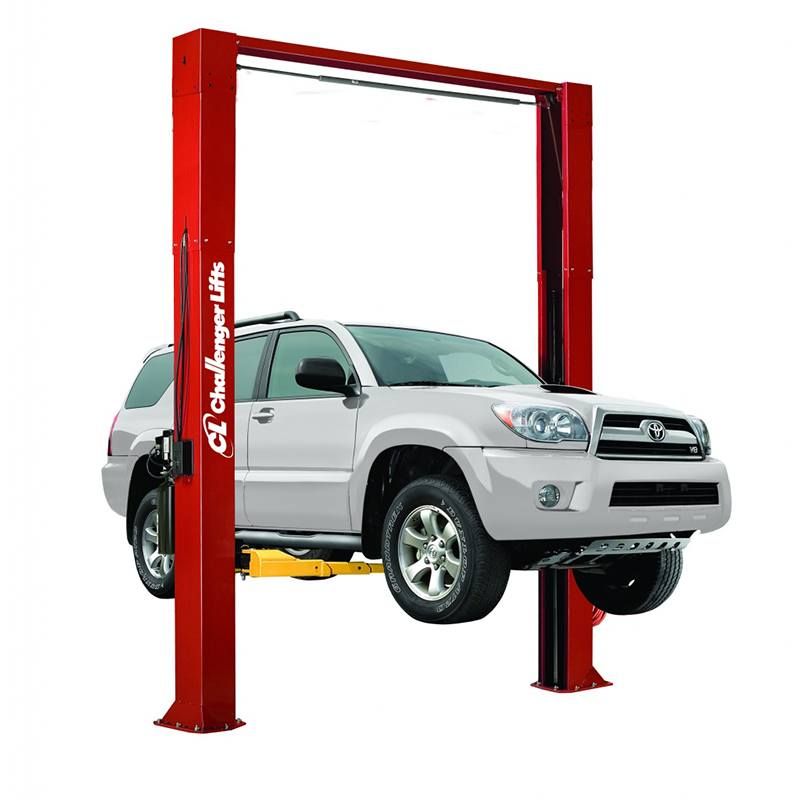

Challenger CL10V3
$7,321.00
Challenger’s CL10V3 model features our exclusive Versymmetric® technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT™ design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.
Challenger CL10V3
$7,321.00
Need Help?
sales@steelbayautomotivesupply.com
Replies within one business day
Replies within one business day
- 10,000 lb. lift capacity
- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
- 48 in. elongated carriage design increases lift life
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
Specs
| SKU# | 6010124 |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Lifting Configuration | Versymmetric (Symmetric & Asymmetric) |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 74.125” |
| Overall Height | 134” / 140” |
| Overall Height (Cylinder Extended) | 143” |
| 2’ Height Extension Available | Yes |
| 3’ Height Extension Available | Yes |
| Overall Width | 138.5” / 143” |
| Drive-Thru Clearance | 100” / 104.5” |
| Floor to Overhead Switch | 128.5” / 134.5” |
| Front Arm Reach | 20” – 42” |
| Rear Arm Reach | 37.625” – 60” |
| Screw Pad Height | 3.875” – 6.125” |
| Inside Columns | 110” / 114.5” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s |
| Ceiling Height Required | 12′ |
| ALI/ETL Certified | Yes |
