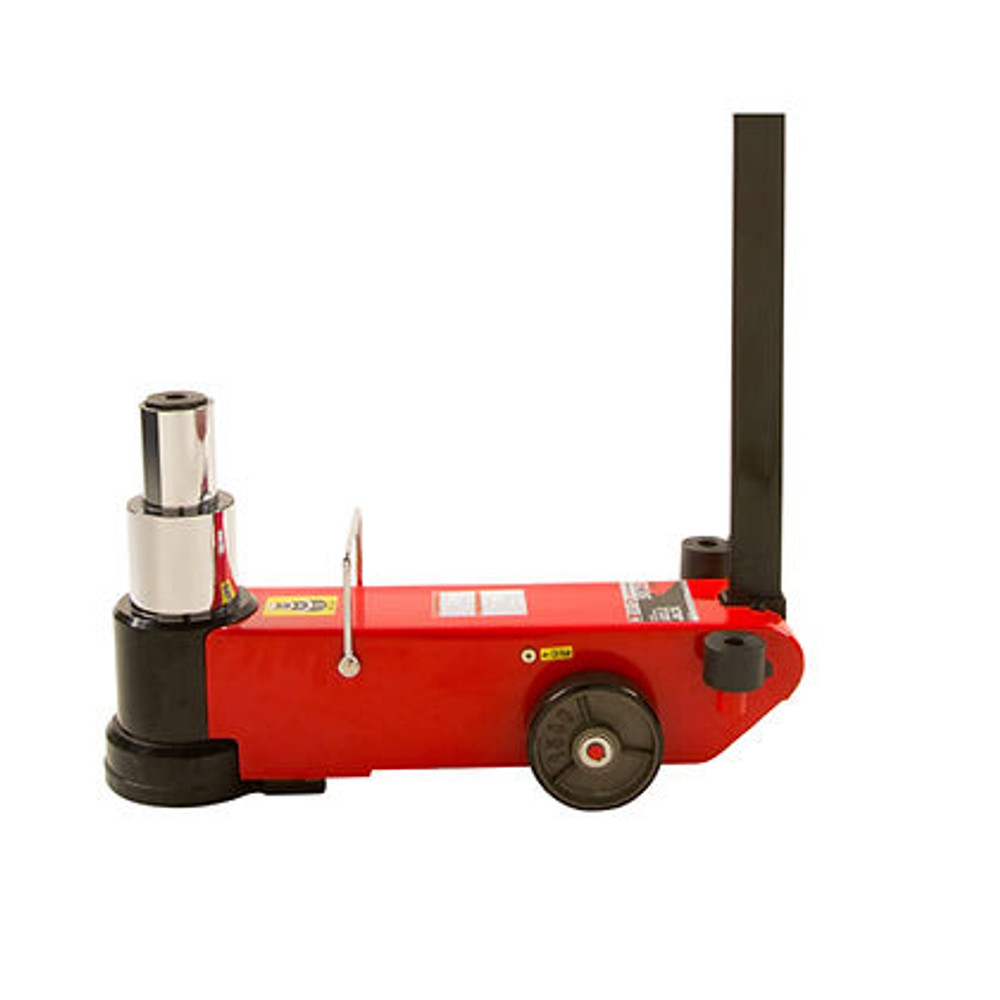

AFF 547SD 50 25 Ton 2 Stage Air Hydraulic Axle Jack
$2,530.00
AFF 547SD 50 25 Ton 2 Stage Air Hydraulic Axle Jack
Capacity: 50 / 25 Tons
Ram Lift: 4.61″ / 9.09″
Low Height: 8.46″ / 8.46″
High Height: 13.07″ / 17.56″
High Height w/Ext.: 18.82″ / 23.31″
Working Air Pressure: 116 to 174 psi
Ship Weight: 165 lbs.
AFF 547SD 50 25 Ton 2 Stage Ai...
$2,530.00
Need Help?
Replies within one business day
SUPER HEAVY DUTY, 2 Stage 50 Ton and 25 Ton built tough for the rigors of the Heavy Duty• Trucking, Agricultural and Fleet business
The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
Integral Descent Metering maintains a controlled and safe lowering of the load
Single piece base construction provides superior strength for increased load stability
Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
Air assisted lowering speeds up ram retraction
Built in overload safety valve prevents damage to unit due to excessive load
Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter
