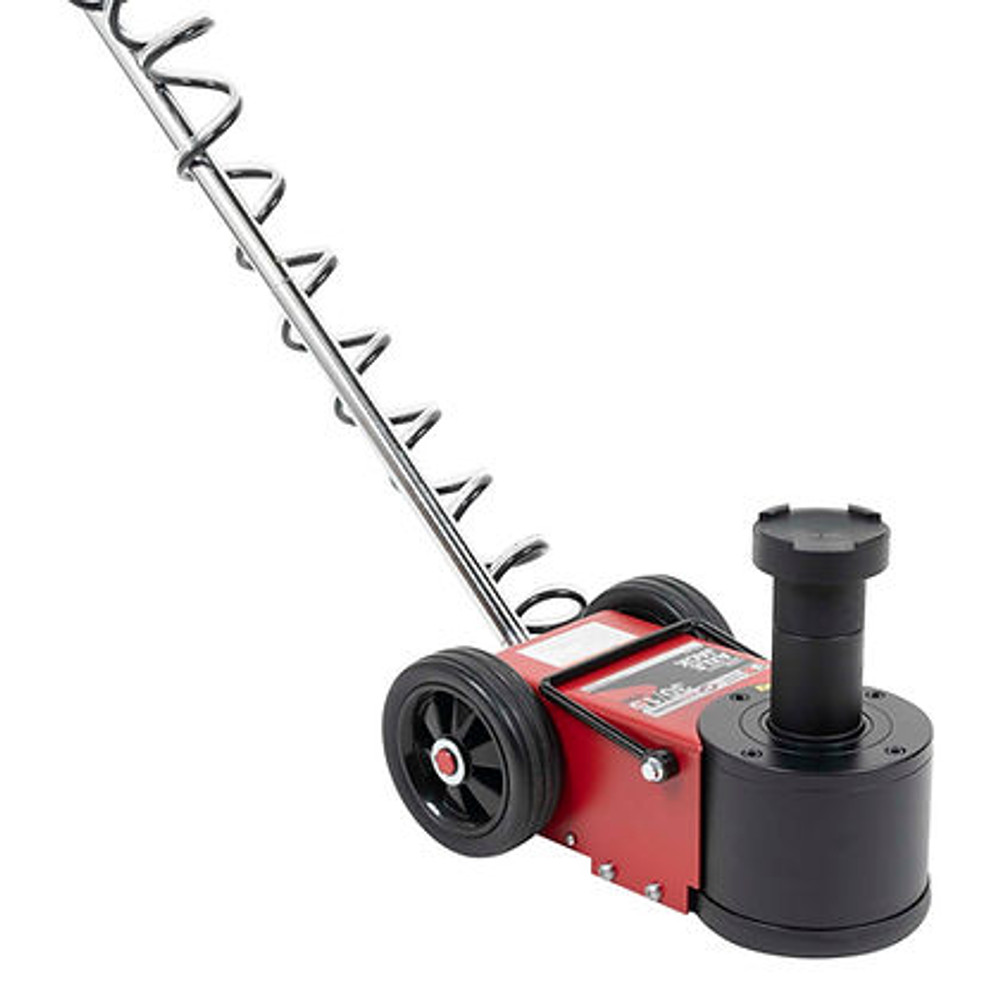

AFF 545SD 30/15 Ton 2 Stage Air Hydraulic Axle Jack
Lightweight design ideal for the Service Vehicle industry
Ideal for drop axles and other low clearance applications
Extra-long removable handle and rugged casters for easy positioning
Descent metering valve allows for a safe and controlled lowering of the load
Includes 1.75” and 3” extensions and saddle adapter
Double polished chrome pistons provide tighter tolerances and greater hydraulic seal
Safety overload system prevents jack from being used beyond its rated capacity
Capacity: 30 / 15 Tons
Ram Lift: 2.91″ / 5.59″
Low Height: 5.92″ / 5.92″
High Height: 8.82″ / 11.5″
High Height w/Ext.: 14.57″ / 17.25″
Working Air Pressure: 116 to 145 psi
Ship Weight: 77 lbs.
